磁珠/滤波器/EMI优化

EMC

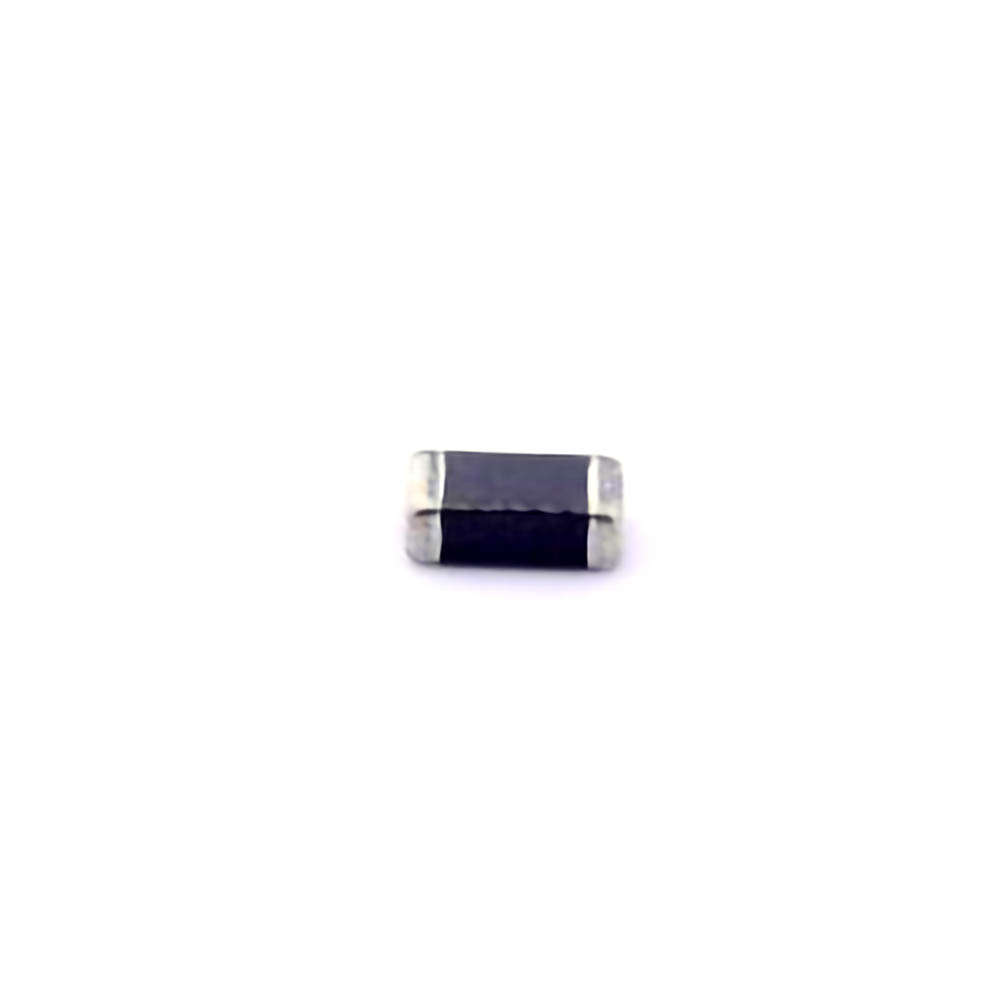

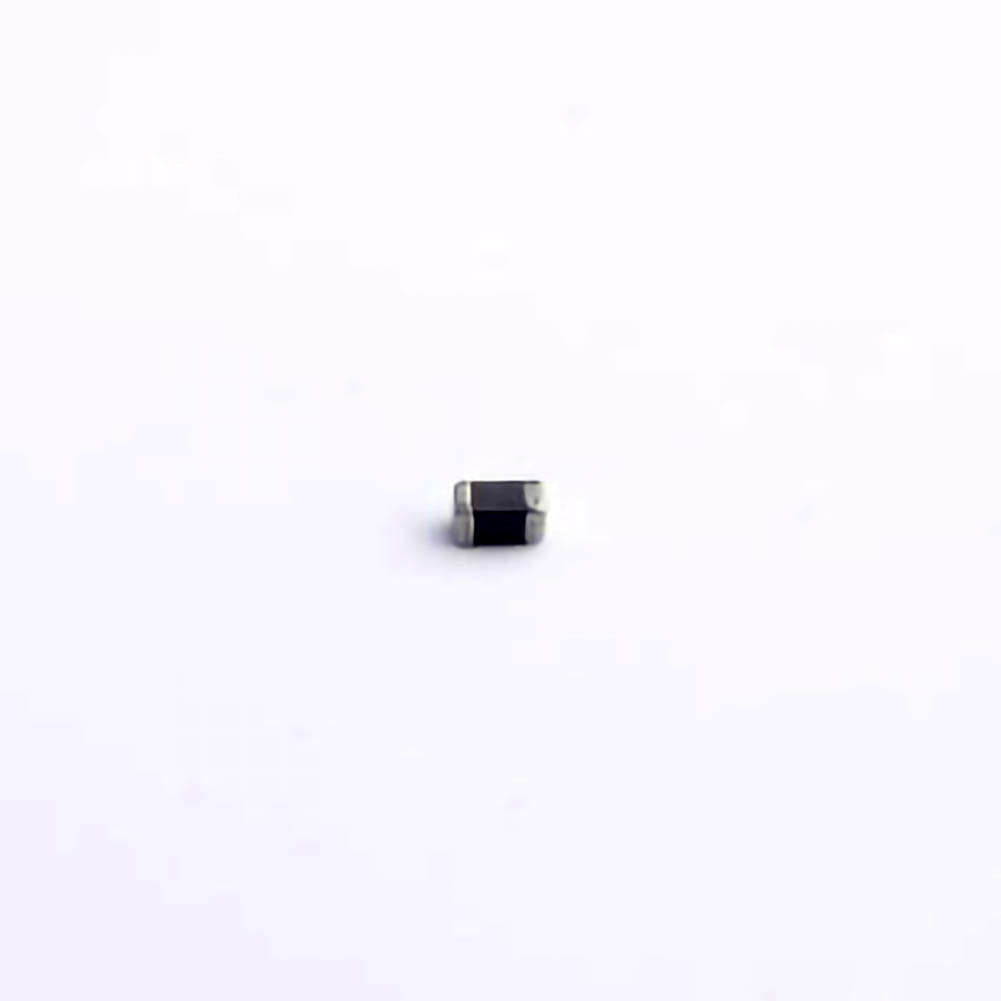

Multilayer chip general-purpose magnetic beads 0603 2000Ω±25% DCR1.1Ω rated current 50MA

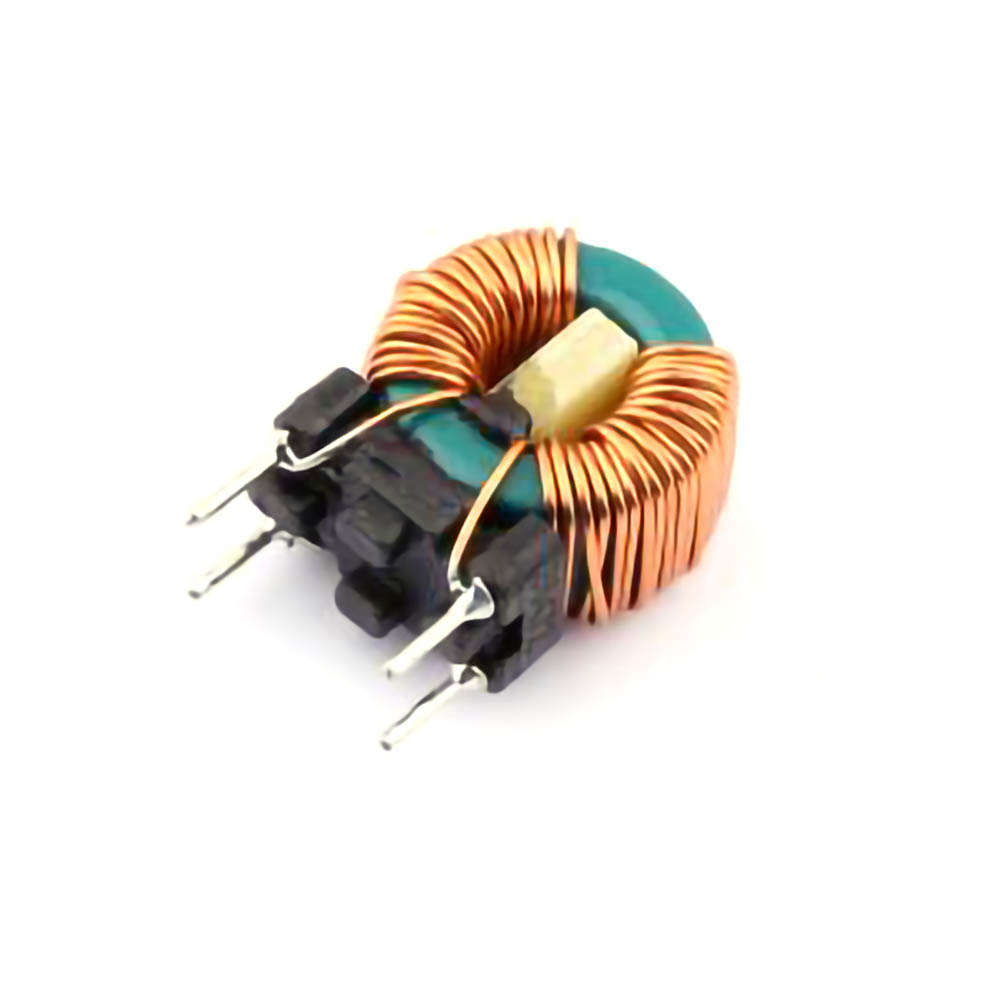

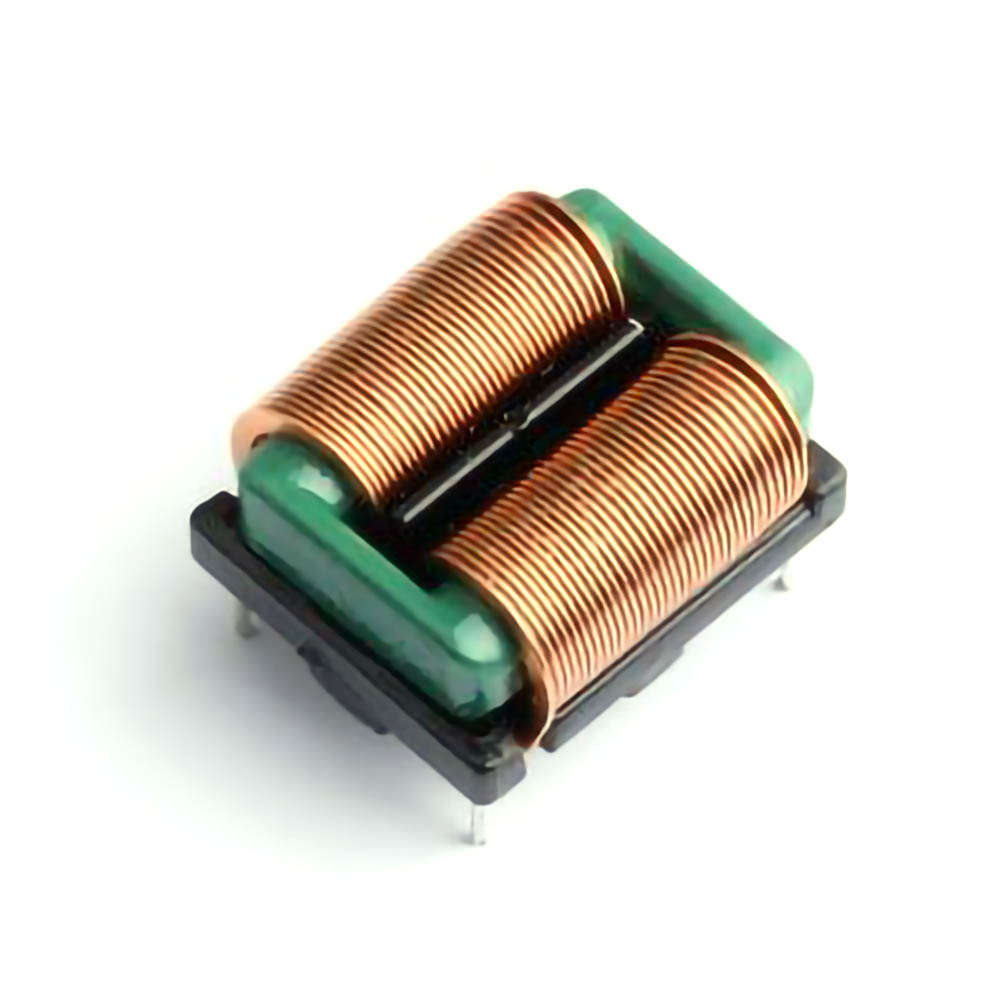

Inductance value: 5mH Min@1KHz, DC resistance (DCR): 100mΩ, vertical 10*13 SQ1918 5mH flat wire common mode inductor

EMC filter

Multilayer Chip General Purpose High Loss Inductors

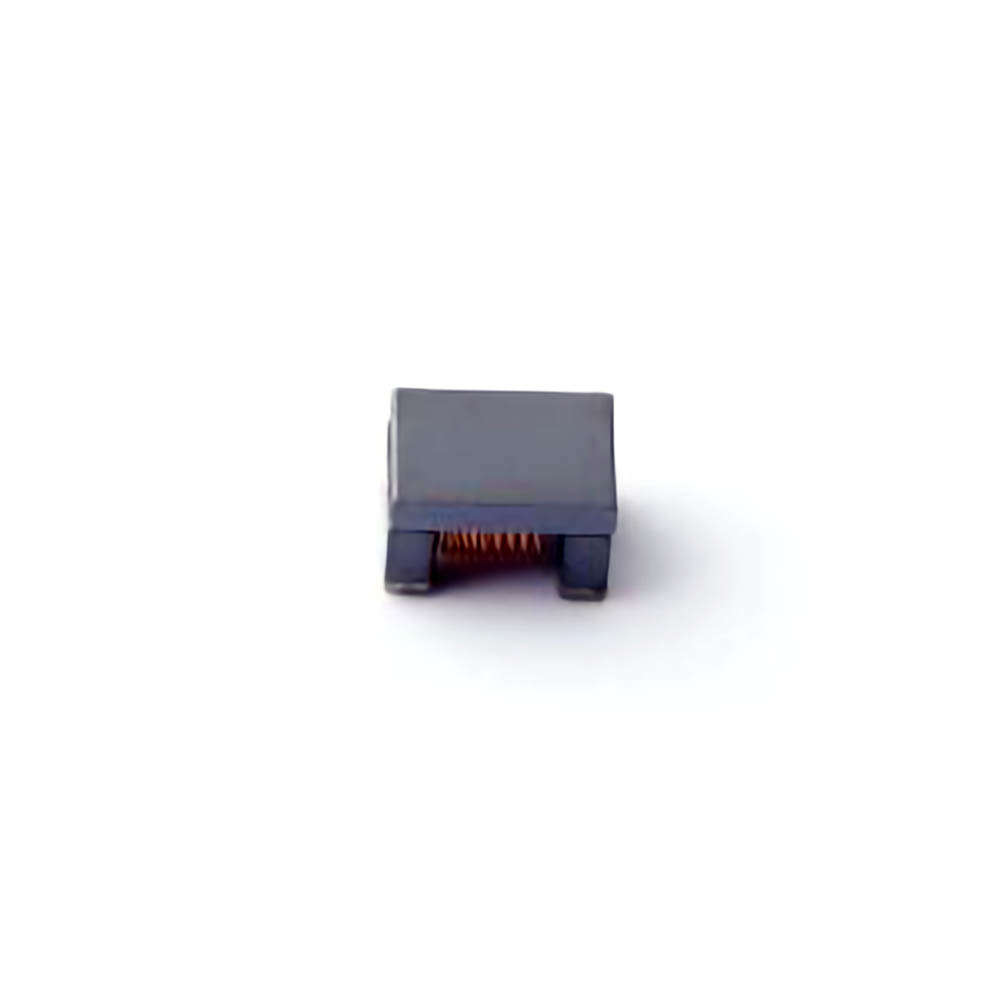

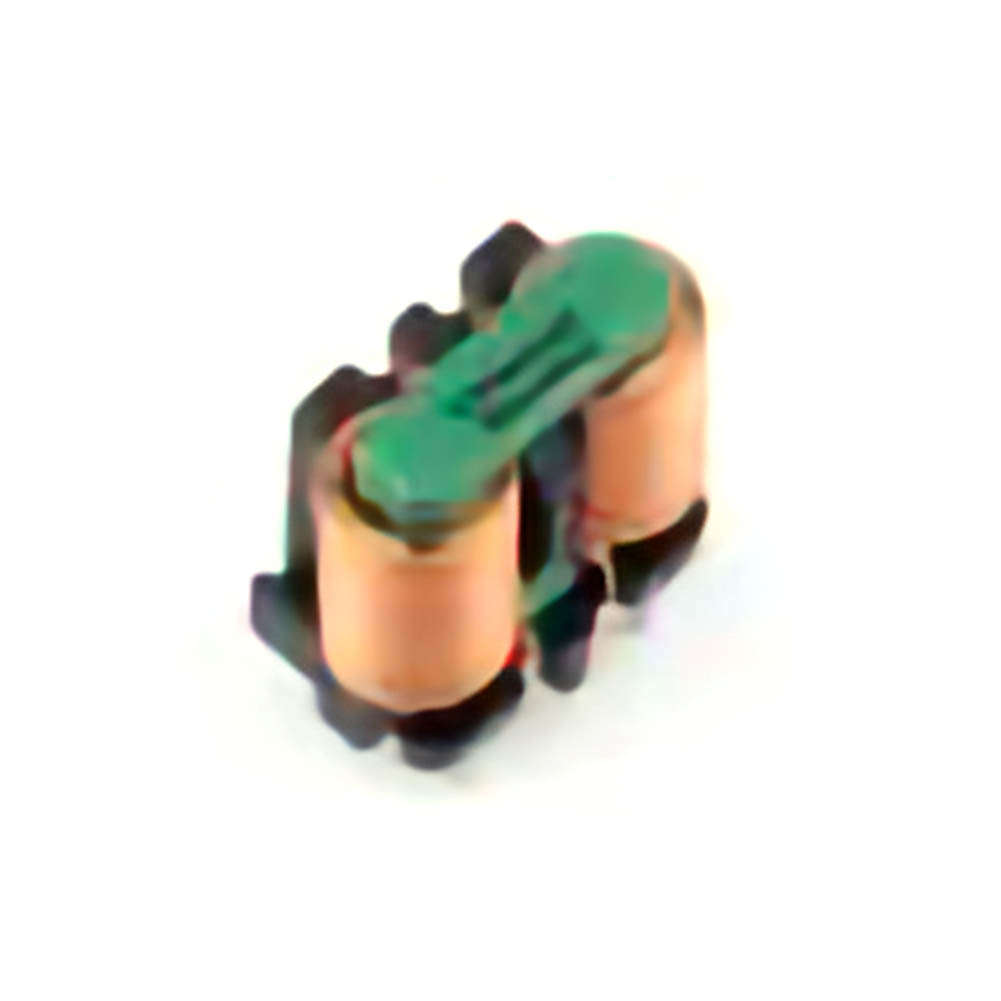

Common mode inductor 11uH -30/+50% Rated current 250mA Common mode impedance 600Ω DC resistance (DCR): 600mΩ MAX Circuit number 2 circuits Withstand voltage 80V Signal line filtering EMC CAN solution 3225
