购买 QD ADUM4160BRWZ DGTL ISOLATOR 5KV 2CH USB 16SOIC

图片可能具有代表性。
产品详情请参阅规格.

数据表

ADUM4160BRWZ

DGTL ISOLATOR 5KV 2CH USB 16SOIC

型号

ADUM4160BRWZ

制造商/品牌

系列

iCoupler®

零件状态

Active

包装

Tube

技术

Magnetic Coupling

工作温度

-40°C ~ 105°C

安装类型

Surface Mount

封装/箱体

16-SOIC (0.295", 7.50mm Width)

类型

USB

通道数

供应商器件封装

16-SOIC

电压 - 电源

3.1 V ~ 5.5 V

数据速率

12Mbps

电压 - 隔离

5000Vrms

通道类型

Bidirectional

上升/下降时间（典型值）

20ns, 20ns (Max)

隔离电源

输入 - 1 侧/2 侧

2/2

共模瞬变抗扰度（最小值）

25kV/µs

传播延迟 tpLH / tpHL （最大值）

70ns, 70ns

脉冲宽度失真（最大）

请求报价

请填写所有必填字段并点击“提交”，我们将在12小时内通过电子邮件与您联系。如果您有任何问题，请留言或发送电子邮件至 1943626632@qq.com，我们将尽快回复。

有货 16521 PCS

联系信息

more_pkgimg

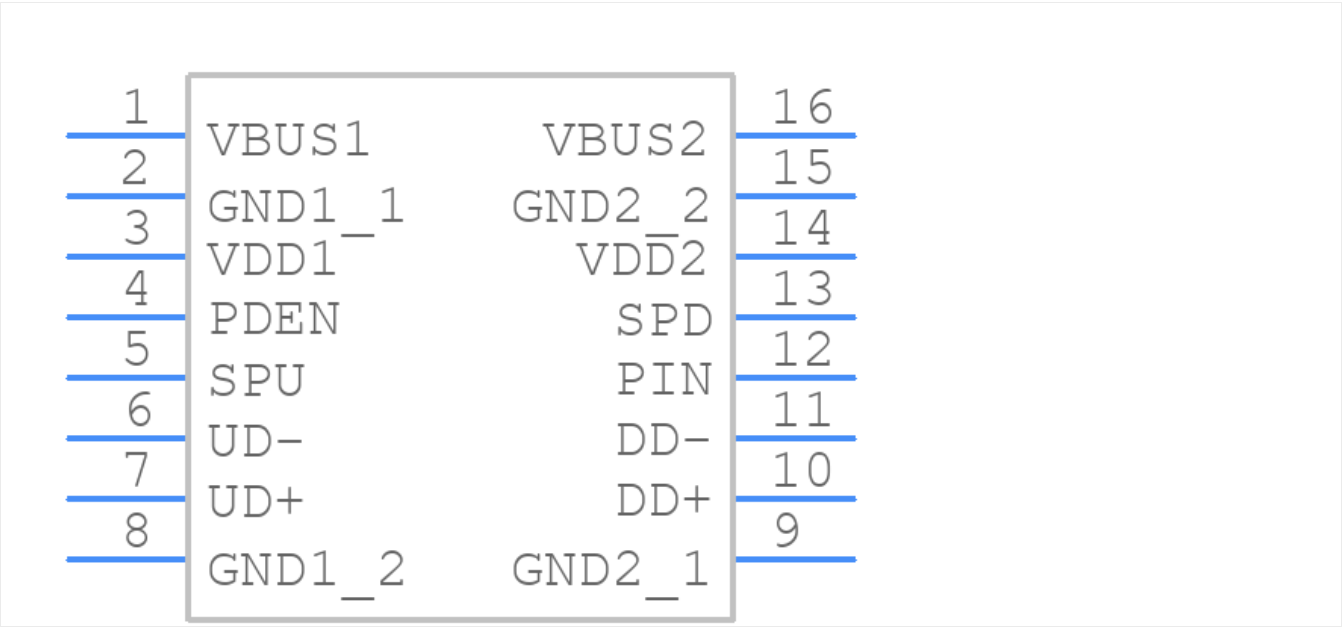

more_schimg

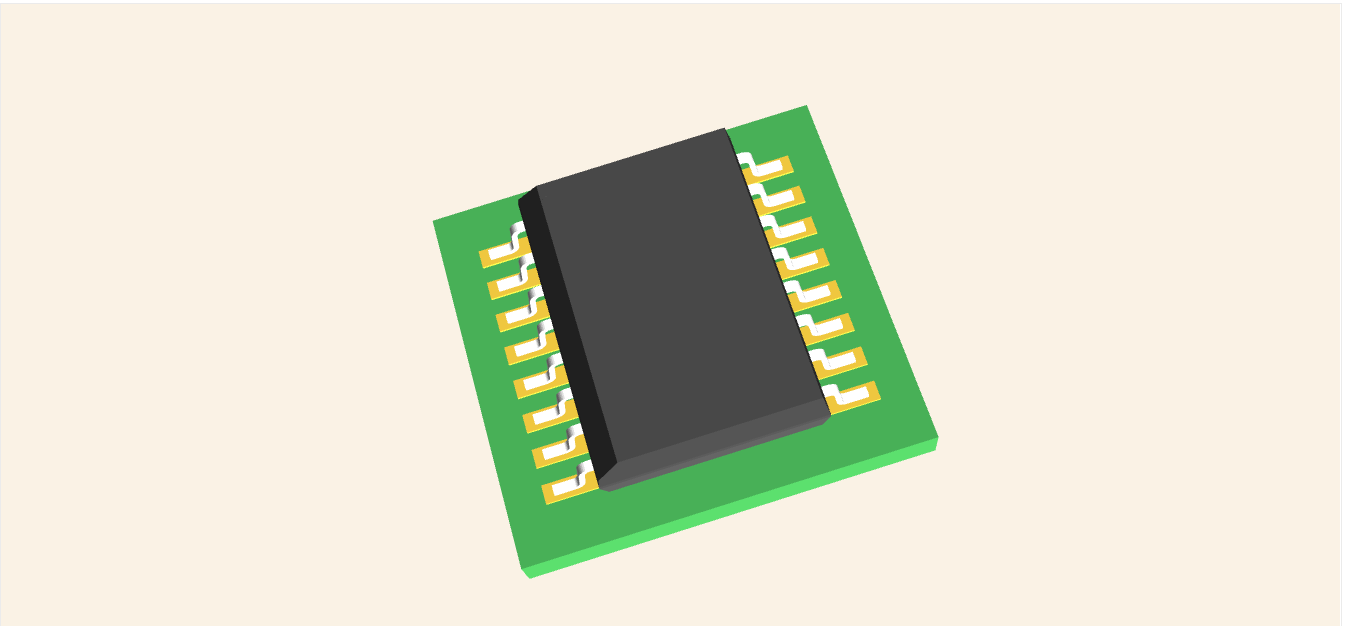

more_3dimg

more_desctext

Full/Low Speed 5 kV USB Digital Isolator
Pin Count--------16
Part Category--------Integrated Circuit
Package Category--------Small Outline Packages

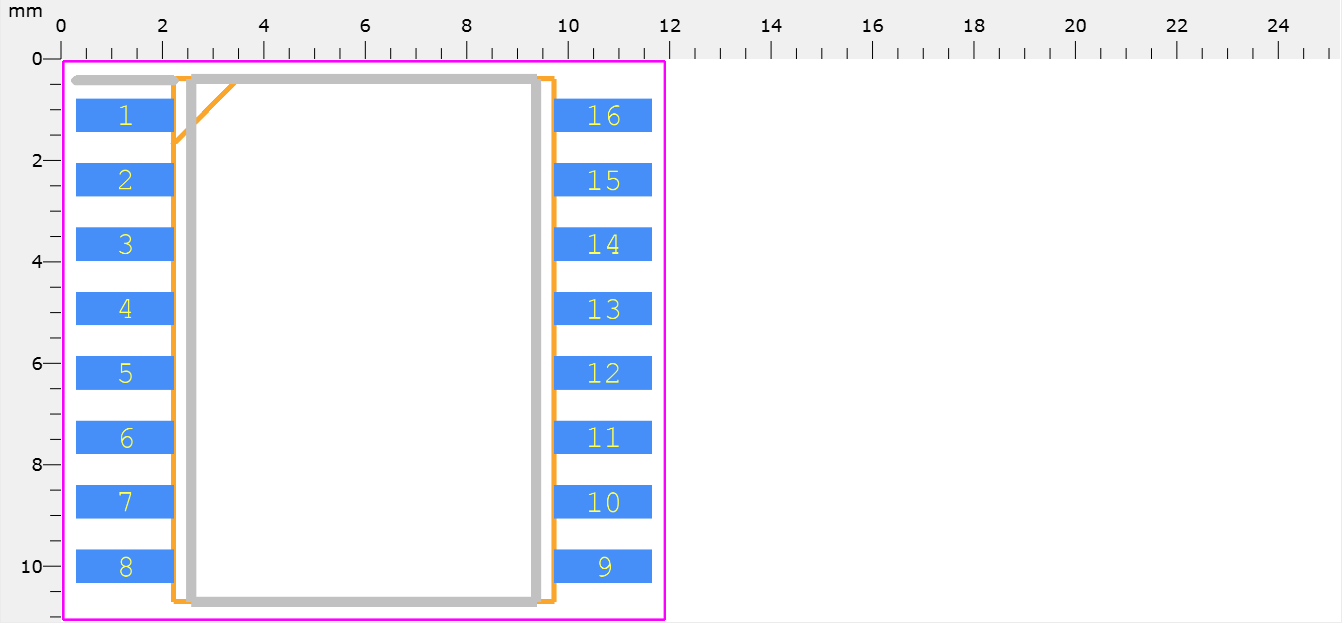

Footprint Name--------Small Outline Packages - RW-16 (SOIC)

download_pdf

more_faq

ADUM4160BRWZ Frequently Asked Questions (FAQs)

What is the maximum data rate that the ADUM4160BRWZ can support?
The ADUM4160BRWZ can support data rates up to 150 Mbps.

Can the ADUM4160BRWZ be used in high-temperature applications?
Yes, the ADUM4160BRWZ is rated for operation from -40°C to +125°C, making it suitable for high-temperature applications.

How does the ADUM4160BRWZ handle common-mode transients?
The ADUM4160BRWZ has a high common-mode transient immunity of 100 kV/μs, making it suitable for applications with high levels of electromagnetic interference (EMI).

Is the ADUM4160BRWZ compatible with other digital isolators?
The ADUM4160BRWZ is pin-compatible with other digital isolators from Analog Devices, making it easy to upgrade or replace existing designs.

What is the typical power consumption of the ADUM4160BRWZ?
The typical power consumption of the ADUM4160BRWZ is 1.5 mA per channel at 5 V, making it suitable for low-power applications.
