IRFR5305TRPBF
MOSFET P-CH 55V 31A DPAK
型号
IRFR5305TRPBF
制造商/品牌
系列
HEXFET®
零件状态
Active
包装
Tape & Reel (TR)
技术
MOSFET (Metal Oxide)
工作温度
-55°C ~ 175°C (TJ)
安装类型
Surface Mount
封装/箱体
TO-252-3, DPak (2 Leads + Tab), SC-63
供应商器件封装
D-Pak
功率耗散（最大）
110W (Tc)
场效应晶体管类型
P-Channel
场效应晶体管特性
-
漏源电压 (Vdss)
55V
电流 - 连续漏极 (Id) @ 25�C
31A (Tc)
Rds On（最大值）@ Id、Vgs
65 mOhm @ 16A, 10V
Vgs(th)（最大值）@Id
4V @ 250µA
栅极电荷 (Qg) (最大值) @ Vgs
63nC @ 10V
输入电容 (Ciss) (最大值) @ Vds
1200pF @ 25V
驱动电压（最大导通电阻、最小导通电阻）
10V
电压 (最大值)
±20V
请求报价
请填写所有必填字段并点击“提交”，我们将在12小时内通过电子邮件与您联系。如果您有任何问题，请留言或发送电子邮件至 1943626632@qq.com，我们将尽快回复。
有货 33863 PCS
联系信息
more_pkgimg
more_schimg
more_3dimg
more_spec
About International Rectifier
International Rectifier (IR) was an American company that specialized in the design and manufacture of power management and power control semiconductors.
The company was founded in 1947 and was headquartered in El Segundo, California.
IR provided a wide range of products including power management ICs, power MOSFETs, IGBTs, and other power control products.
The company's products were used in various applications such as computing, telecommunications, and industrial automation.
IR was known for its expertise in power management and control technology and its ability to deliver high-quality and reliable products to its customers.
In 2014, IR was acquired by Infineon Technologies, a leading provider of power management and control products and other semiconductor solutions.
The International Rectifier brand is no longer in use, but its technology and products continue to be a part of Infineon's portfolio.
*This information is for general informational purposes only, we will not be liable for any loss or damage caused by the above information.
International Rectifier (IR) was an American company that specialized in the design and manufacture of power management and power control semiconductors.
The company was founded in 1947 and was headquartered in El Segundo, California.
IR provided a wide range of products including power management ICs, power MOSFETs, IGBTs, and other power control products.
The company's products were used in various applications such as computing, telecommunications, and industrial automation.
IR was known for its expertise in power management and control technology and its ability to deliver high-quality and reliable products to its customers.
In 2014, IR was acquired by Infineon Technologies, a leading provider of power management and control products and other semiconductor solutions.
The International Rectifier brand is no longer in use, but its technology and products continue to be a part of Infineon's portfolio.
*This information is for general informational purposes only, we will not be liable for any loss or damage caused by the above information.
more_desctext

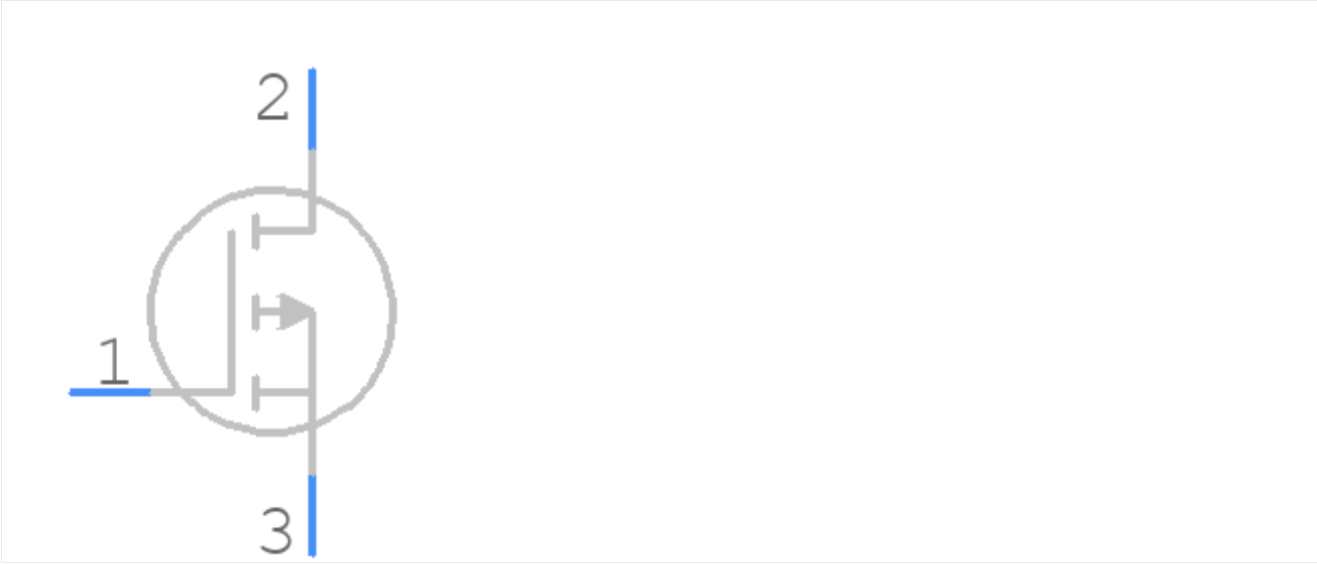

-55V Single P-Channel HEXFET Power MOSFET in a D-Pak package
Pin Count--------3
Part Category--------MOSFET (P-Channel)
Package Category--------Other

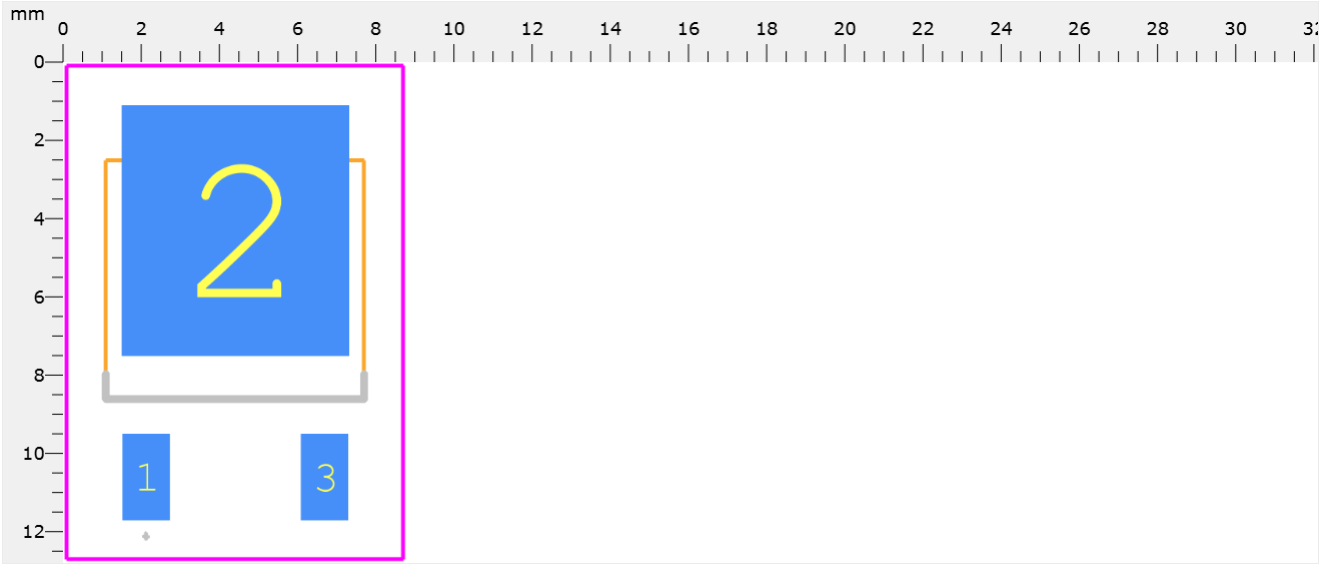

Footprint Name--------Other - IRFR5305TRPBF-3
Pin Count--------3
Part Category--------MOSFET (P-Channel)
Package Category--------Other
Footprint Name--------Other - IRFR5305TRPBF-3
download_pdf
more_faq
IRFR5305TRPBF Frequently Asked Questions (FAQs)
What is the maximum operating temperature range for the IRFR5305TRPBF?
The maximum operating temperature range for the IRFR5305TRPBF is -55°C to 175°C.
How do I ensure the reliability of the IRFR5305TRPBF in high-power applications?
To ensure reliability, ensure proper thermal management, use a suitable heat sink, and follow the recommended PCB layout and assembly guidelines.
What is the maximum allowable voltage for the IRFR5305TRPBF?
The maximum allowable voltage for the IRFR5305TRPBF is 55V.
How do I protect the IRFR5305TRPBF from electrostatic discharge (ESD)?
Handle the device with ESD-protective equipment, use an ESD-protective wrist strap, and follow proper ESD-handling procedures.
What is the recommended storage condition for the IRFR5305TRPBF?
Store the device in a dry, cool place, away from direct sunlight, and in its original packaging or an ESD-protective bag.
What is the maximum operating temperature range for the IRFR5305TRPBF?
The maximum operating temperature range for the IRFR5305TRPBF is -55°C to 175°C.
How do I ensure the reliability of the IRFR5305TRPBF in high-power applications?
To ensure reliability, ensure proper thermal management, use a suitable heat sink, and follow the recommended PCB layout and assembly guidelines.
What is the maximum allowable voltage for the IRFR5305TRPBF?
The maximum allowable voltage for the IRFR5305TRPBF is 55V.
How do I protect the IRFR5305TRPBF from electrostatic discharge (ESD)?
Handle the device with ESD-protective equipment, use an ESD-protective wrist strap, and follow proper ESD-handling procedures.
What is the recommended storage condition for the IRFR5305TRPBF?
Store the device in a dry, cool place, away from direct sunlight, and in its original packaging or an ESD-protective bag.
