EN5339QI Frequently Asked Questions (FAQs)

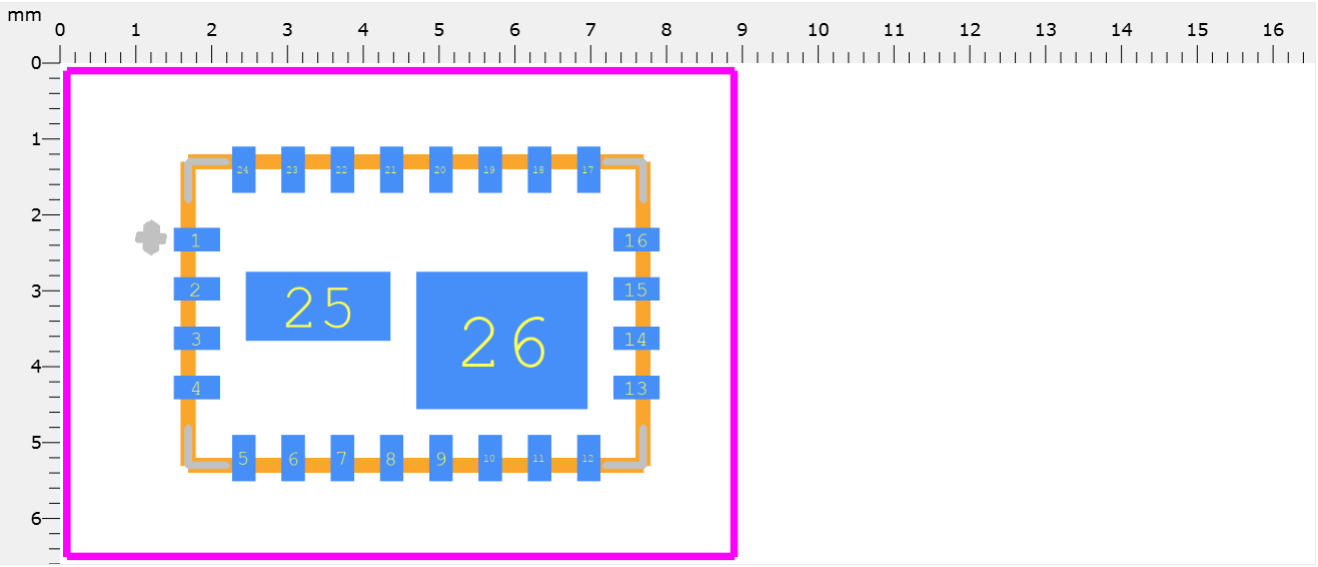

What is the recommended PCB layout for optimal performance?
A 4-layer PCB with a solid ground plane and a separate power plane is recommended. Keep the signal traces short and away from the power plane to minimize noise and EMI.


How do I ensure reliable operation in high-temperature environments?
Use a heat sink with a thermal interface material, ensure good airflow, and consider using a thermal management IC to monitor and control temperature. Also, follow Intel's thermal design guidelines.


What are the specific requirements for the input power supply?
The EN5339QI requires a single 3.3V power supply with a minimum of 1A current capability. Ensure the power supply has low ripple and noise, and use a high-quality decoupling capacitor (e.g., 10uF) close to the device.


How do I optimize the device for low power consumption?
Use the device's power-saving features, such as dynamic voltage and frequency scaling. Implement a low-power mode in your design, and consider using a power management IC to optimize power consumption.


What are the specific requirements for the clock signal?
The EN5339QI requires a 25MHz clock signal with a duty cycle of 50% ±10%. Ensure the clock signal has low jitter and is properly terminated to prevent signal reflections.
