ATTINY13A-SSUR
IC MCU 8BIT 1KB FLASH 8SOIC
型号
ATTINY13A-SSUR
制造商/品牌
系列
AVR® ATtiny
零件状态
Active
包装
Tape & Reel (TR)
工作温度
-40°C ~ 85°C (TA)
封装/箱体
8-SOIC (0.154", 3.90mm Width)
供应商器件封装
8-SOIC
外设
Brown-out Detect/Reset, POR, PWM, WDT
核心处理器
AVR
速度
20MHz
电压 - 电源 (Vcc/Vdd)
1.8 V ~ 5.5 V
输入/输出数量
6
RAM 大小
64 x 8
核心尺寸
8-Bit
连接
-
程序存储器大小
1KB (512 x 16)
程序存储器类型
Flash
EEPROM 大小
64 x 8
数据转换器
A/D 4x10b
振荡器类型
Internal
请求报价
请填写所有必填字段并点击“提交”，我们将在12小时内通过电子邮件与您联系。如果您有任何问题，请留言或发送电子邮件至 1943626632@qq.com，我们将尽快回复。
有货 51355 PCS
联系信息
more_pkgimg
more_schimg
more_3dimg
more_spec
About ATMEL Corporation
Atmel Corporation was an American semiconductor company that was founded in 1984.
The company was a leading provider of microcontrollers, touch solutions, and other semiconductor products for various applications in the consumer, industrial, and automotive markets.
Atmel's products were known for their small form factor, low power consumption, and high performance.
In 2016, Atmel was acquired by Microchip Technology Inc., a leading provider of microcontroller and analog semiconductors.
The Atmel brand and technology continue to be developed and sold as part of Microchip's portfolio of products.
*This information is for general informational purposes only, we will not be liable for any loss or damage caused by the above information.
Atmel Corporation was an American semiconductor company that was founded in 1984.
The company was a leading provider of microcontrollers, touch solutions, and other semiconductor products for various applications in the consumer, industrial, and automotive markets.
Atmel's products were known for their small form factor, low power consumption, and high performance.
In 2016, Atmel was acquired by Microchip Technology Inc., a leading provider of microcontroller and analog semiconductors.
The Atmel brand and technology continue to be developed and sold as part of Microchip's portfolio of products.
*This information is for general informational purposes only, we will not be liable for any loss or damage caused by the above information.
more_desctext
MICROCHIP - ATTINY13A-SSUR - MCU, 8BIT, ATTINY, 20MHZ, SOIC-8
Pin Count--------8
Part Category--------Integrated Circuit
Package Category--------Small Outline Packages

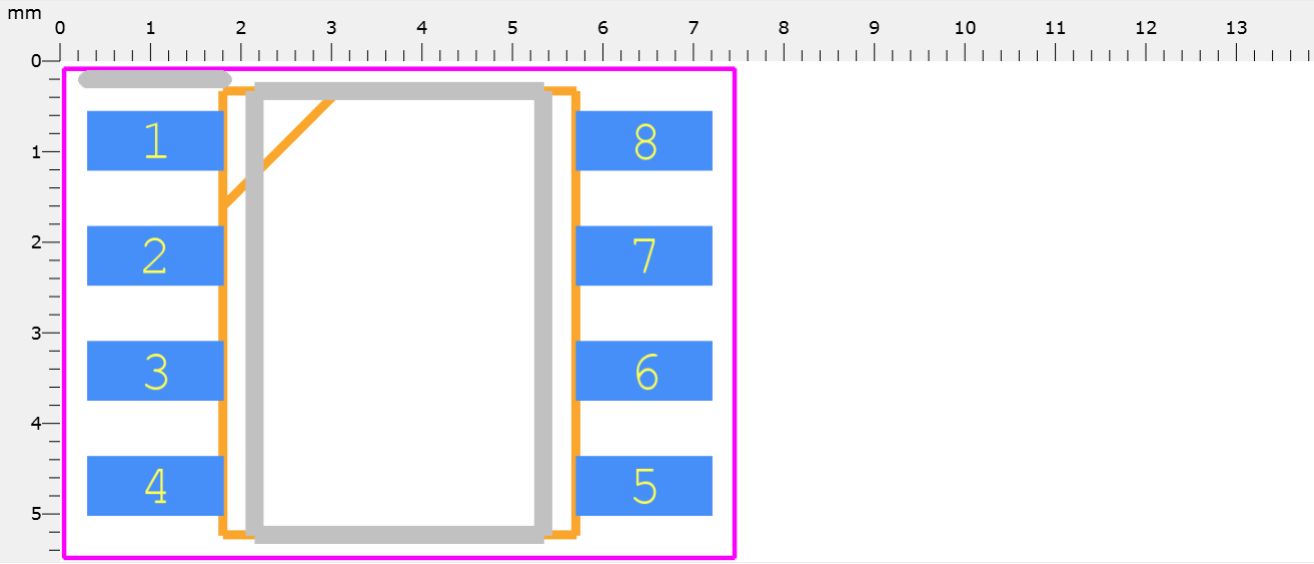

Footprint Name--------Small Outline Packages - 8S1, 8-lead (0.150” Wide Body), Plastic Gull Wing Small Outline (JEDEC SOIC)
Pin Count--------8
Part Category--------Integrated Circuit
Package Category--------Small Outline Packages
Footprint Name--------Small Outline Packages - 8S1, 8-lead (0.150” Wide Body), Plastic Gull Wing Small Outline (JEDEC SOIC)
download_pdf
more_faq
ATTINY13A-SSUR Frequently Asked Questions (FAQs)
What is the maximum clock frequency for the ATTINY13A-SSUR?
The maximum clock frequency for the ATTINY13A-SSUR is 20 MHz.
Can I use the ATTINY13A-SSUR in a 5V system?
Yes, the ATTINY13A-SSUR is rated for operation from 2.7V to 5.5V, making it suitable for use in 5V systems.
How much power does the ATTINY13A-SSUR consume in sleep mode?
The ATTINY13A-SSUR consumes approximately 100 nA in power-down sleep mode.
Can I use the ATTINY13A-SSUR for USB applications?
No, the ATTINY13A-SSUR does not have a built-in USB interface. It is a general-purpose microcontroller and is not suitable for USB applications.
What is the maximum amount of flash memory available on the ATTINY13A-SSUR?
The ATTINY13A-SSUR has 1 KB of flash memory available for program storage.
What is the maximum clock frequency for the ATTINY13A-SSUR?
The maximum clock frequency for the ATTINY13A-SSUR is 20 MHz.
Can I use the ATTINY13A-SSUR in a 5V system?
Yes, the ATTINY13A-SSUR is rated for operation from 2.7V to 5.5V, making it suitable for use in 5V systems.
How much power does the ATTINY13A-SSUR consume in sleep mode?
The ATTINY13A-SSUR consumes approximately 100 nA in power-down sleep mode.
Can I use the ATTINY13A-SSUR for USB applications?
No, the ATTINY13A-SSUR does not have a built-in USB interface. It is a general-purpose microcontroller and is not suitable for USB applications.
What is the maximum amount of flash memory available on the ATTINY13A-SSUR?
The ATTINY13A-SSUR has 1 KB of flash memory available for program storage.
