MP1584EN-LF-Z Frequently Asked Questions (FAQs)


What is the maximum input voltage that the MP1584EN-LF-Z can handle?
The MP1584EN-LF-Z can handle input voltages up to 28V, but it's recommended to keep it below 24V for optimal performance and reliability.


How do I ensure the stability of the output voltage?
To ensure stability, make sure to use the recommended output capacitor values and types, and keep the output voltage within the specified range. Also, ensure that the input voltage is within the recommended range and the input capacitor is properly sized.


What is the maximum output current that the MP1584EN-LF-Z can provide?
The MP1584EN-LF-Z can provide up to 2A of output current, but it's recommended to derate the output current based on the ambient temperature and the input voltage to ensure reliable operation.


How do I adjust the output voltage of the MP1584EN-LF-Z?
The output voltage of the MP1584EN-LF-Z can be adjusted by using a resistor divider network between the output and the FB pin. The output voltage can be calculated using the formula: Vout = 0.8V x (R1 + R2) / R2, where R1 and R2 are the resistors in the divider network.

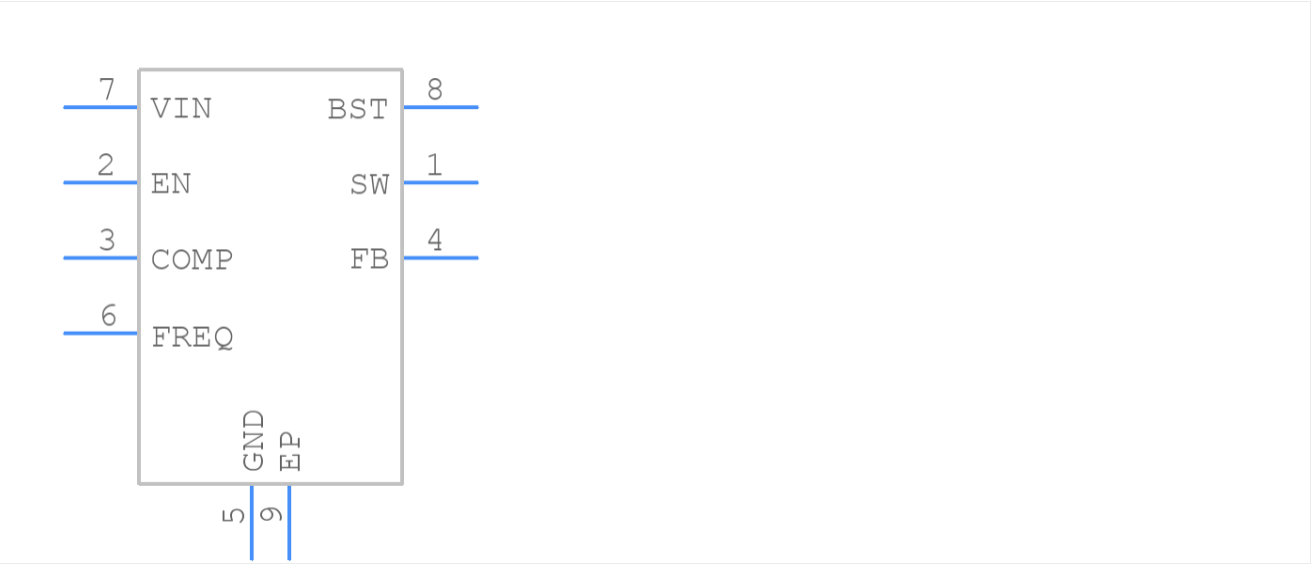

What is the purpose of the EN pin on the MP1584EN-LF-Z?
The EN (enable) pin is used to turn the regulator on or off. When the EN pin is pulled high, the regulator is enabled, and when it's pulled low, the regulator is disabled. This pin can be used to implement power sequencing or to turn off the regulator when not in use.
