SMMBT2222ALT1G
TRANS NPN 40V 0.6A SOT23
型号
SMMBT2222ALT1G
制造商/品牌
系列
Automotive, AEC-Q101
零件状态
Active
包装
Tape & Reel (TR)
工作温度
-55°C ~ 150°C (TJ)
安装类型
Surface Mount
封装/箱体
TO-236-3, SC-59, SOT-23-3
功率 - 最大
225mW
供应商器件封装
SOT-23-3 (TO-236)
晶体管类型
NPN
电流 - 集电极 (Ic)（最大值）
600mA
电压 - 集电极发射极击穿电压（最大值）
40V
Vce 饱和度（最大值）@ Ib, Ic
1V @ 50mA, 500mA
电流 - 集电极截止（最大值）
10nA (ICBO)
直流电流增益 (hFE) (最小值) @ Ic, Vce
100 @ 150mA, 10V
频率 - 过渡
300MHz
请求报价
请填写所有必填字段并点击“提交”，我们将在12小时内通过电子邮件与您联系。如果您有任何问题，请留言或发送电子邮件至 1943626632@qq.com，我们将尽快回复。
有货 49522 PCS
联系信息
more_pkgimg
more_schimg
more_3dimg
more_spec
About ON Semiconductor
ON Semiconductor is a publicly traded company that designs, develops, and manufactures a wide range of semiconductor products for various applications, including automotive, computing, consumer, industrial, and communications markets.
The company was founded in 1999 and is headquartered in Phoenix, Arizona.
ON Semiconductor offers a broad portfolio of power management, analog, and discrete semiconductors, including power MOSFETs, diodes, rectifiers, and voltage regulators, among others.
The company's products are designed to be energy efficient, reliable, and cost-effective, and are used in a variety of applications, including portable electronics, industrial automation systems, renewable energy systems, and automotive electronics.
ON Semiconductor is dedicated to innovation and customer satisfaction, and is committed to providing its customers with the best semiconductor solutions to meet their needs.
*This information is for gen
more_desctext
General Purpose Transistors NPN Silicon
Pin Count--------3
Part Category--------Integrated Circuit
Package Category--------SOT23 (3-Pin)

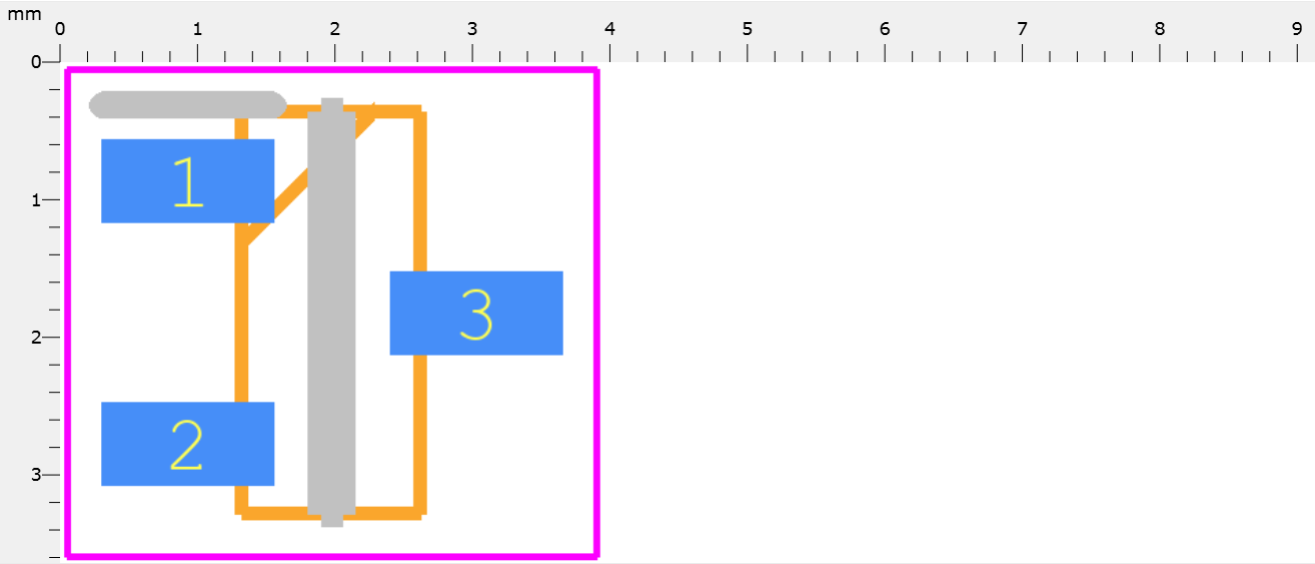

Footprint Name--------SOT23 (3-Pin) - SOT−23 (TO−236) CASE 318 ISSUE AT
Pin Count--------3
Part Category--------Integrated Circuit
Package Category--------SOT23 (3-Pin)
Footprint Name--------SOT23 (3-Pin) - SOT−23 (TO−236) CASE 318 ISSUE AT
download_pdf
more_faq
MMBT2222ALT1G Frequently Asked Questions (FAQs)
What is the maximum operating temperature range for the MMBT2222ALT1G?
The maximum operating temperature range for the MMBT2222ALT1G is -55°C to 150°C.
Is the MMBT2222ALT1G a RoHS-compliant device?
Yes, the MMBT2222ALT1G is a RoHS-compliant device, meaning it meets the European Union's Restriction of Hazardous Substances directive.
What is the typical storage temperature range for the MMBT2222ALT1G?
The typical storage temperature range for the MMBT2222ALT1G is -55°C to 150°C.
Can the MMBT2222ALT1G be used in high-reliability applications?
Yes, the MMBT2222ALT1G is suitable for use in high-reliability applications, such as aerospace, defense, and medical devices, due to its high-quality manufacturing and testing processes.
Is the MMBT2222ALT1G a drop-in replacement for other NPN transistors?
The MMBT2222ALT1G is a general-purpose NPN transistor, and it can be used as a drop-in replacement for other NPN transistors with similar specifications, but it's always recommended to verify the specifications and performance in the specific application.
What is the maximum operating temperature range for the MMBT2222ALT1G?
The maximum operating temperature range for the MMBT2222ALT1G is -55°C to 150°C.
Is the MMBT2222ALT1G a RoHS-compliant device?
Yes, the MMBT2222ALT1G is a RoHS-compliant device, meaning it meets the European Union's Restriction of Hazardous Substances directive.
What is the typical storage temperature range for the MMBT2222ALT1G?
The typical storage temperature range for the MMBT2222ALT1G is -55°C to 150°C.
Can the MMBT2222ALT1G be used in high-reliability applications?
Yes, the MMBT2222ALT1G is suitable for use in high-reliability applications, such as aerospace, defense, and medical devices, due to its high-quality manufacturing and testing processes.
Is the MMBT2222ALT1G a drop-in replacement for other NPN transistors?
The MMBT2222ALT1G is a general-purpose NPN transistor, and it can be used as a drop-in replacement for other NPN transistors with similar specifications, but it's always recommended to verify the specifications and performance in the specific application.
