购买 STMicroelectronics STM32F091RCT6 IC MCU 32BIT 256KB FLASH 64LQFP

图片可能具有代表性。
产品详情请参阅规格.

更多信息数据表

STM32F091RCT6

IC MCU 32BIT 256KB FLASH 64LQFP

型号

STM32F091RCT6

制造商/品牌

STMicroelectronics

系列

STM32F0

零件状态

Active

包装

Tray

工作温度

-40°C ~ 85°C (TA)

封装/箱体

64-LQFP

供应商器件封装

64-LQFP (10x10)

外设

DMA, I²S, POR, PWM, WDT

核心处理器

ARM® Cortex®-M0

速度

48MHz

电压 - 电源 (Vcc/Vdd)

2 V ~ 3.6 V

输入/输出数量

RAM 大小

32K x 8

核心尺寸

32-Bit

连接

CAN, I²C, IrDA, LIN, SPI, UART/USART

程序存储器大小

256KB (256K x 8)

程序存储器类型

Flash

EEPROM 大小

数据转换器

A/D 19x12b, D/A 2x12b

振荡器类型

Internal

请求报价

请填写所有必填字段并点击“提交”，我们将在12小时内通过电子邮件与您联系。如果您有任何问题，请留言或发送电子邮件至 1943626632@qq.com，我们将尽快回复。

有货 47846 PCS

联系信息

more_pkgimg

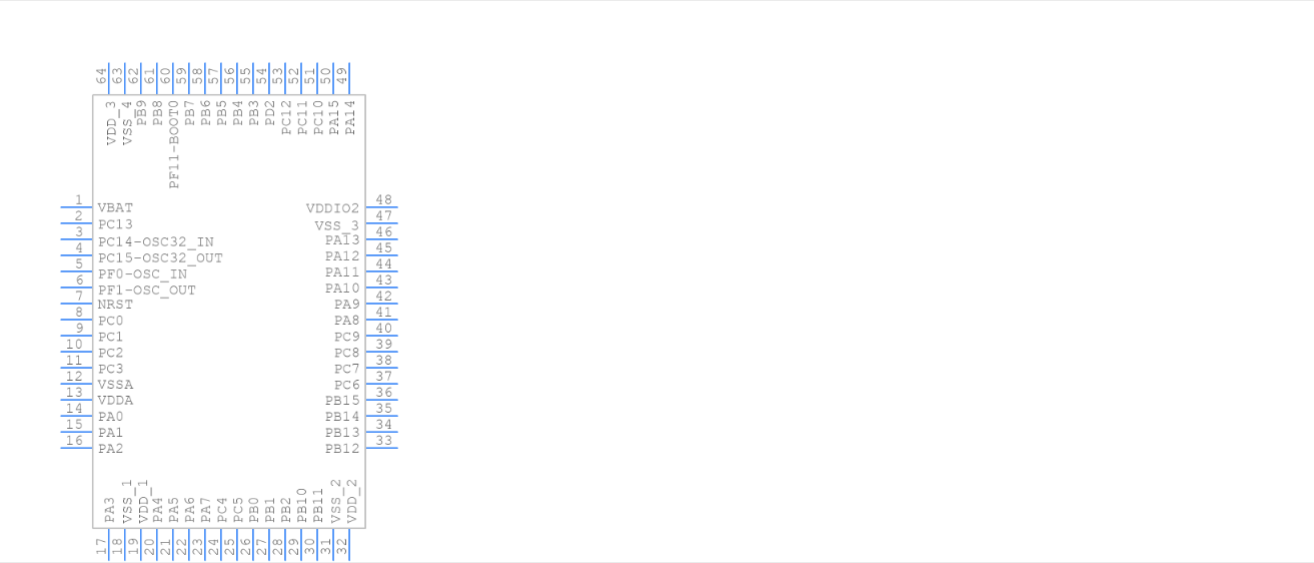

more_schimg

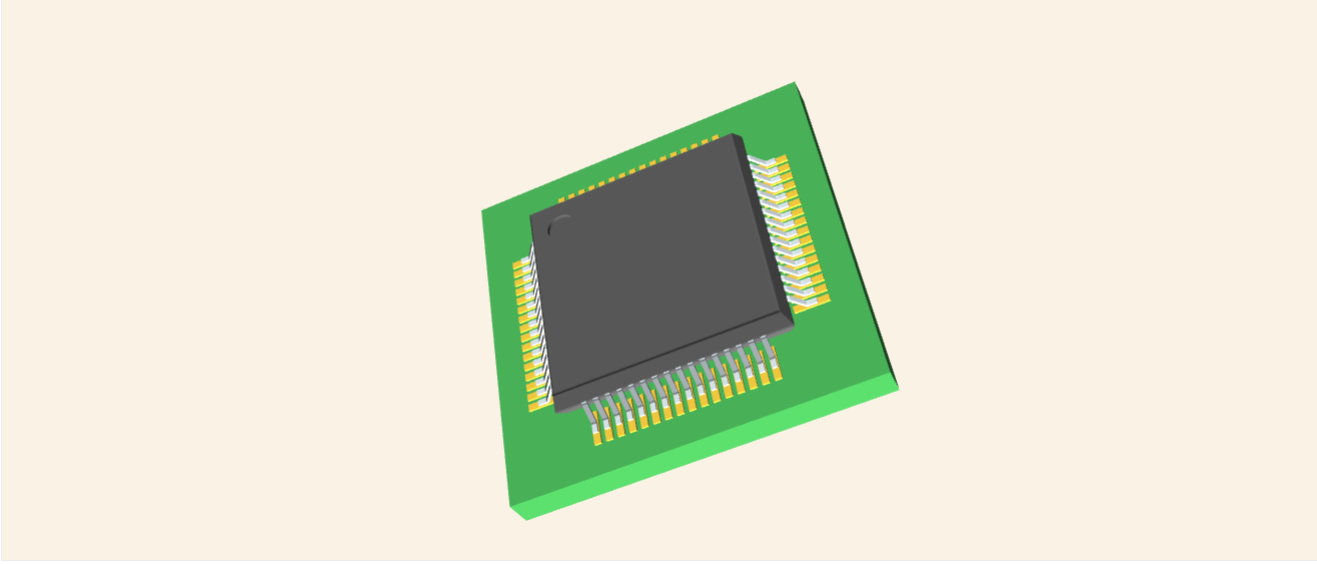

more_3dimg

more_spec

About STMicroelectronics

STMicroelectronics is a multinational electronics and semiconductor manufacturer based in Geneva, Switzerland.

The company offers a wide range of products including microcontrollers, sensors, power amplifiers, and integrated circuits for various applications in the automotive, industrial, and consumer markets.

Founded in 1987, STMicroelectronics has operations in over 100 countries and is one of the largest semiconductor companies in the world.

*This information is for general informational purposes only, we will not be liable for any loss or damage caused by the above information.

more_desctext

STMICROELECTRONICS - STM32F091RCT6 - MCU, 32BIT, CORTEX-M0, 48MHZ, LQFP-64
Pin Count--------64
Part Category--------Integrated Circuit
Package Category--------Quad Flat Packages

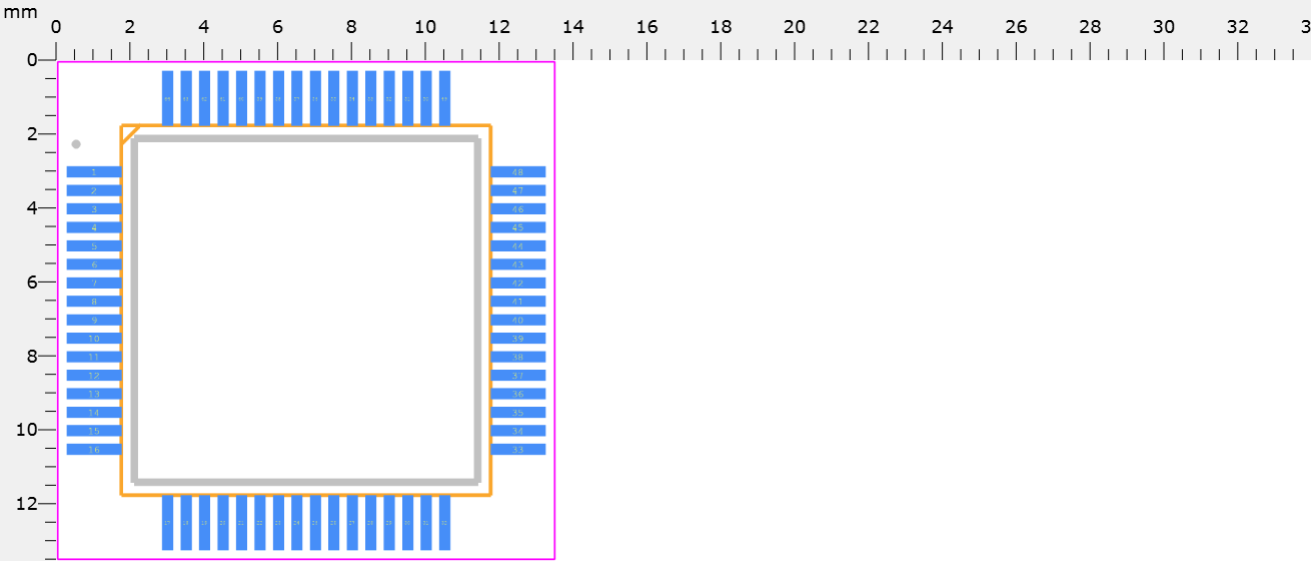

Footprint Name--------Quad Flat Packages - LQFP, 10 X 10 X 1.4 PKG, 0.5 PITCH, 64LD

download_pdf

more_faq

STM32F091RCT6 Frequently Asked Questions (FAQs)

What is the maximum clock frequency of the STM32F091RCT6?
The maximum clock frequency of the STM32F091RCT6 is 48 MHz.

How much flash memory does the STM32F091RCT6 have?
The STM32F091RCT6 has 256 KB of flash memory.

Can the STM32F091RCT6 operate at 5V?
No, the STM32F091RCT6 is a 3.6V device and should not be operated at 5V. Operating the device at 5V can cause damage or malfunction.

What is the power consumption of the STM32F091RCT6?
The power consumption of the STM32F091RCT6 depends on the operating mode and frequency. In low-power mode, the current consumption is around 350 μA/MHz, and in sleep mode, it is around 2 μA.

Does the STM32F091RCT6 have a built-in USB interface?
No, the STM32F091RCT6 does not have a built-in USB interface. However, it has a USB device peripheral that can be used to implement a USB interface with an external transceiver.
