ULN2803AFWG,C,EL
TRANS 8NPN DARL 50V 0.5A 18SOL
型号
ULN2803AFWG,C,EL
系列
-
零件状态
Obsolete
包装
Tape & Reel (TR)
工作温度
-40°C ~ 85°C (TA)
安装类型
Surface Mount
封装/箱体
18-SOIC (0.295", 7.50mm Width)
功率 - 最大
1.31W
供应商器件封装
18-SOL
晶体管类型
8 NPN Darlington
电流 - 集电极 (Ic)（最大值）
500mA
电压 - 集电极发射极击穿电压（最大值）
50V
Vce 饱和度（最大值）@ Ib, Ic
1.6V @ 500µA, 350mA
电流 - 集电极截止（最大值）
-
直流电流增益 (hFE) (最小值) @ Ic, Vce
1000 @ 350mA, 2V
频率 - 过渡
-
请求报价
请填写所有必填字段并点击“提交”，我们将在12小时内通过电子邮件与您联系。如果您有任何问题，请留言或发送电子邮件至 1943626632@qq.com，我们将尽快回复。
有货 48318 PCS
联系信息
more_pkgimg

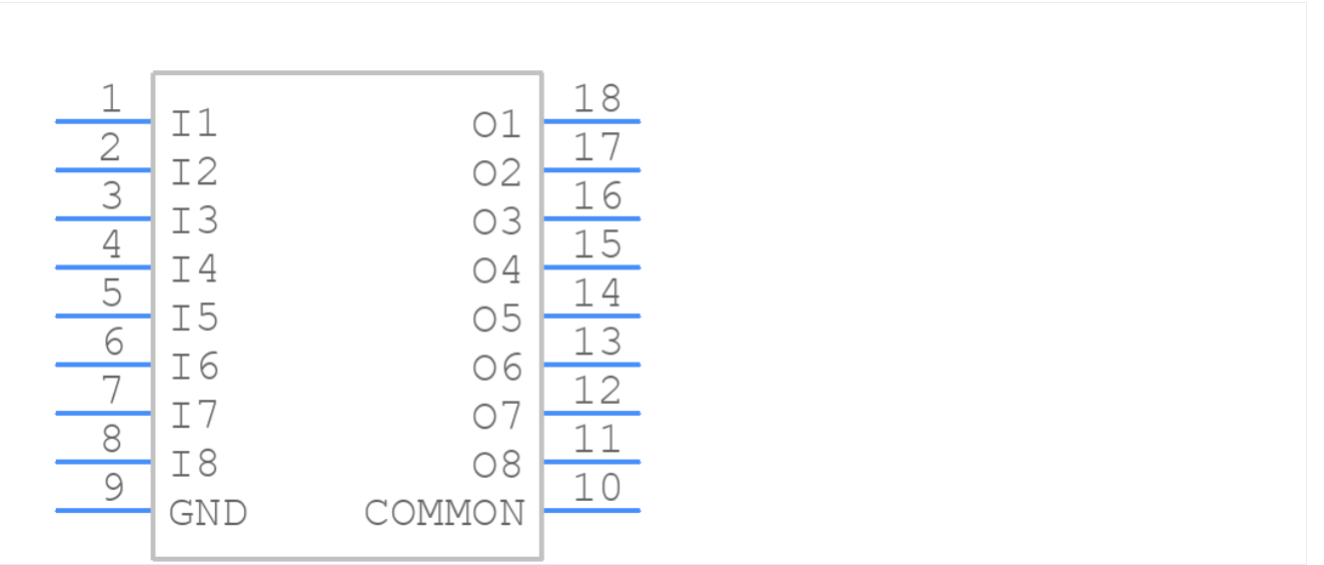

more_schimg

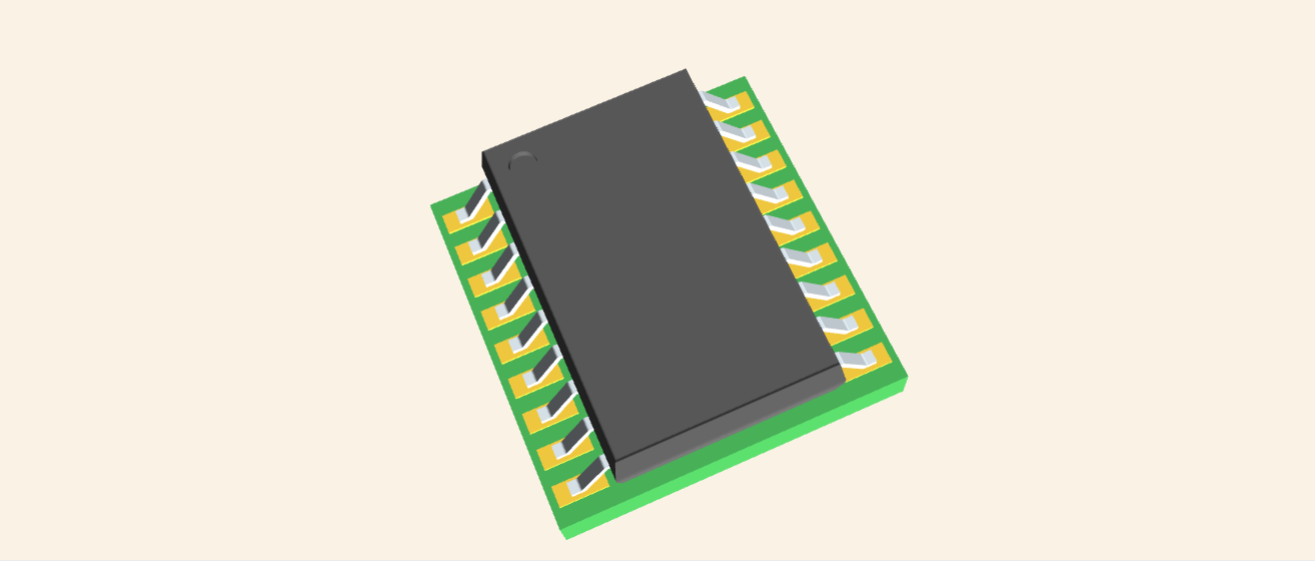

more_3dimg
more_desctext
8 Channel High Current Driver SOL18P-300 T+R Lead
Pin Count--------18
Part Category--------Integrated Circuit
Package Category--------Small Outline Packages

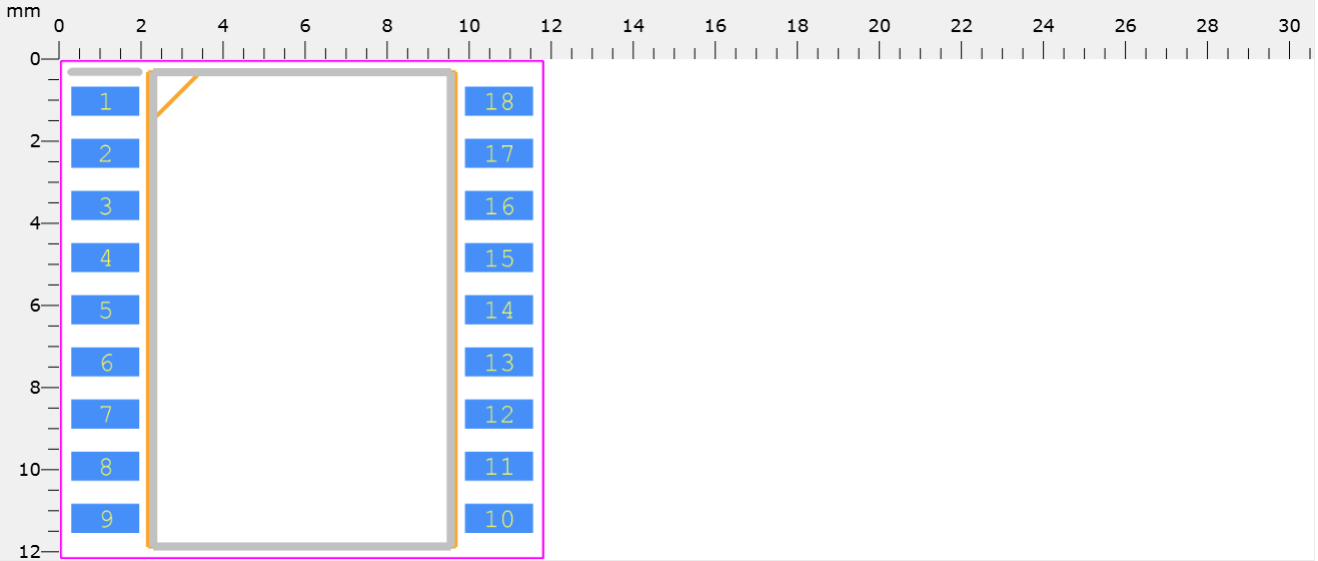

Footprint Name--------Small Outline Packages - SOL18−P−300−1.27
Pin Count--------18
Part Category--------Integrated Circuit
Package Category--------Small Outline Packages
Footprint Name--------Small Outline Packages - SOL18−P−300−1.27
download_pdf
more_faq
ULN2803AFWG(C,ELHA Frequently Asked Questions (FAQs)
What is the maximum operating temperature range for the ULN2803AFWG?
The maximum operating temperature range for the ULN2803AFWG is -20°C to 85°C.
Can I use the ULN2803AFWG as a relay driver?
Yes, the ULN2803AFWG can be used as a relay driver due to its high current capability and low output impedance.
What is the minimum input voltage required for the ULN2803AFWG to function properly?
The minimum input voltage required for the ULN2803AFWG to function properly is 2.4V.
Is the ULN2803AFWG compatible with 5V logic?
Yes, the ULN2803AFWG is compatible with 5V logic, but it can also operate with input voltages as low as 2.4V.
What is the maximum output current per channel for the ULN2803AFWG?
The maximum output current per channel for the ULN2803AFWG is 500mA.
What is the maximum operating temperature range for the ULN2803AFWG?
The maximum operating temperature range for the ULN2803AFWG is -20°C to 85°C.
Can I use the ULN2803AFWG as a relay driver?
Yes, the ULN2803AFWG can be used as a relay driver due to its high current capability and low output impedance.
What is the minimum input voltage required for the ULN2803AFWG to function properly?
The minimum input voltage required for the ULN2803AFWG to function properly is 2.4V.
Is the ULN2803AFWG compatible with 5V logic?
Yes, the ULN2803AFWG is compatible with 5V logic, but it can also operate with input voltages as low as 2.4V.
What is the maximum output current per channel for the ULN2803AFWG?
The maximum output current per channel for the ULN2803AFWG is 500mA.
