W25Q16JVSNIQ Frequently Asked Questions (FAQs)


What is the maximum number of erase cycles for the W25Q16JVSNIQ?
The W25Q16JVSNIQ has a minimum of 100,000 erase cycles, but the actual number of cycles may vary depending on usage and environmental conditions.

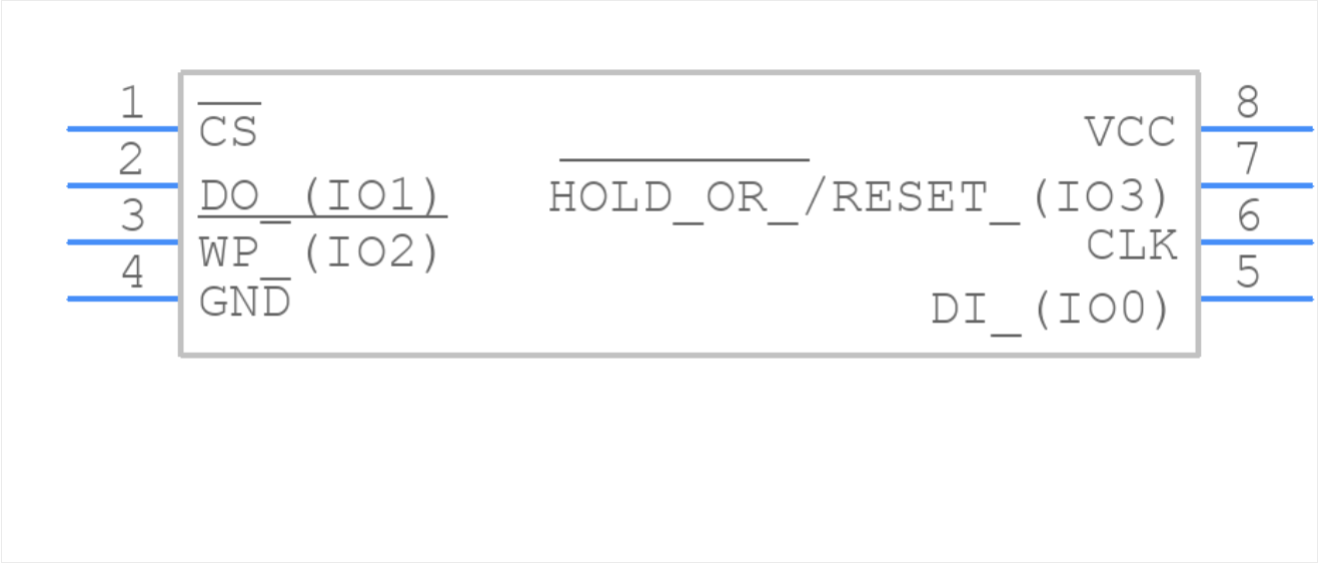

How do I handle the hold pin (HOLD#) on the W25Q16JVSNIQ?
The hold pin (HOLD#) is used to pause the current operation and put the device in a low-power state. To use it, assert the HOLD# pin low to pause the operation, and then de-assert it to resume the operation.


What is the purpose of the WP# pin on the W25Q16JVSNIQ?
The WP# pin is a write-protect pin that allows the user to protect the entire memory array or a portion of it from being written or erased. When WP# is low, the memory is write-protected.


How do I determine the optimal clock frequency for the W25Q16JVSNIQ?
The optimal clock frequency for the W25Q16JVSNIQ depends on the specific application and system requirements. The datasheet recommends a maximum clock frequency of 104 MHz, but the actual frequency may need to be adjusted based on system constraints and signal integrity.


What is the difference between the W25Q16JVSNIQ and the W25Q16JVSSIQ?

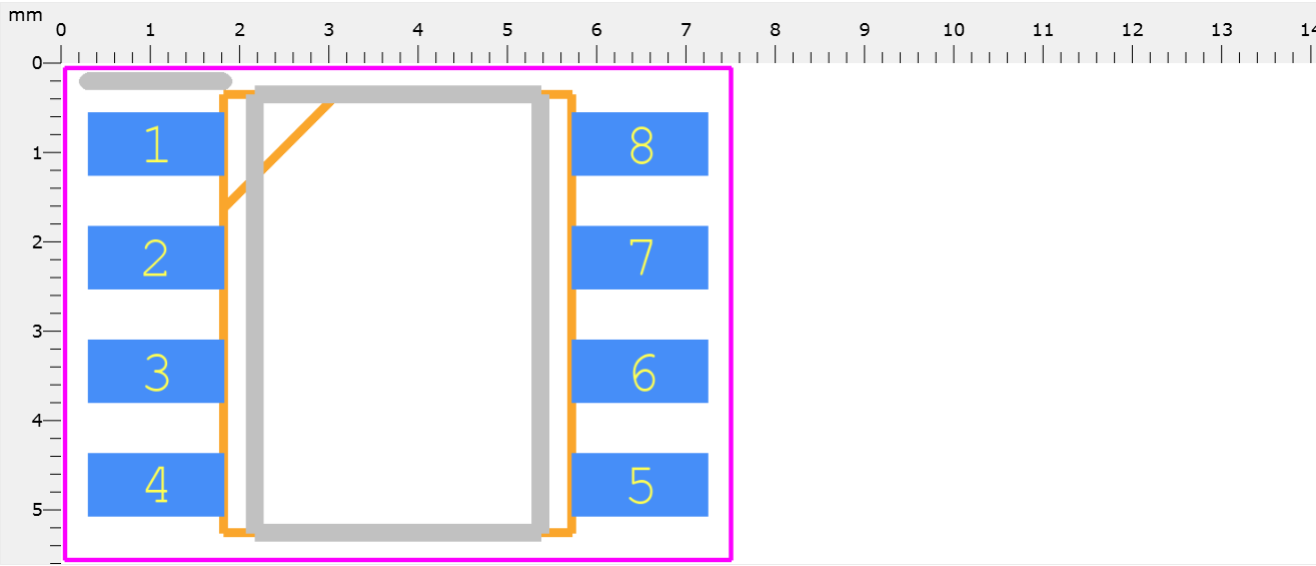

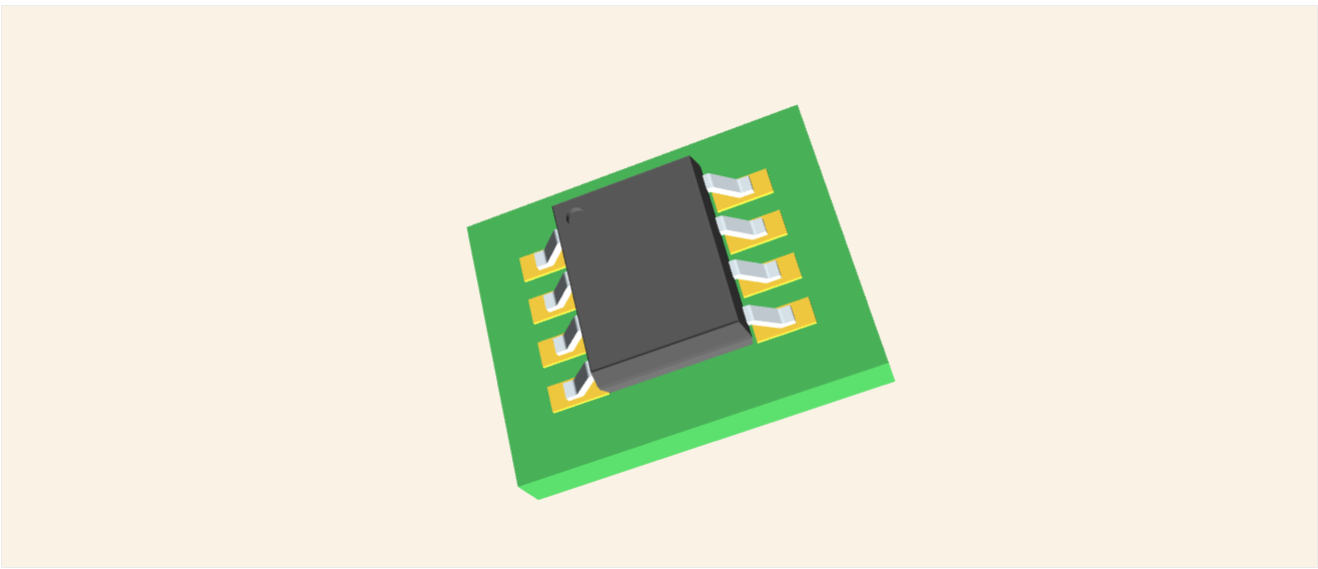

The main difference between the W25Q16JVSNIQ and the W25Q16JVSSIQ is the package type. The W25Q16JVSNIQ is available in a SOP-8 package, while the W25Q16JVSSIQ is available in a WSON-8 package. Both devices have the same electrical characteristics and functionality.
