购买 Winbond Electronics W9825G6KH-6 IC SDRAM 256MBIT 166MHZ 54TSOP

图片可能具有代表性。
产品详情请参阅规格.

更多信息数据表

W9825G6KH-6

IC SDRAM 256MBIT 166MHZ 54TSOP

型号

W9825G6KH-6

制造商/品牌

Winbond Electronics

系列

零件状态

Active

包装

Tray

技术

SDRAM

工作温度

0°C ~ 70°C (TA)

安装类型

Surface Mount

封装/箱体

54-TSOP (0.400", 10.16mm Width)

供应商器件封装

54-TSOP II

电压 - 电源

3 V ~ 3.6 V

内存类型

Volatile

内存大小

256Mb (16M x 16)

访问时间

5ns

时钟频率

166MHz

内存格式

DRAM

写入周期时间 - 字、页

内存接口

Parallel

请求报价

请填写所有必填字段并点击“提交”，我们将在12小时内通过电子邮件与您联系。如果您有任何问题，请留言或发送电子邮件至 1943626632@qq.com，我们将尽快回复。

有货 36459 PCS

联系信息

more_pkgimg

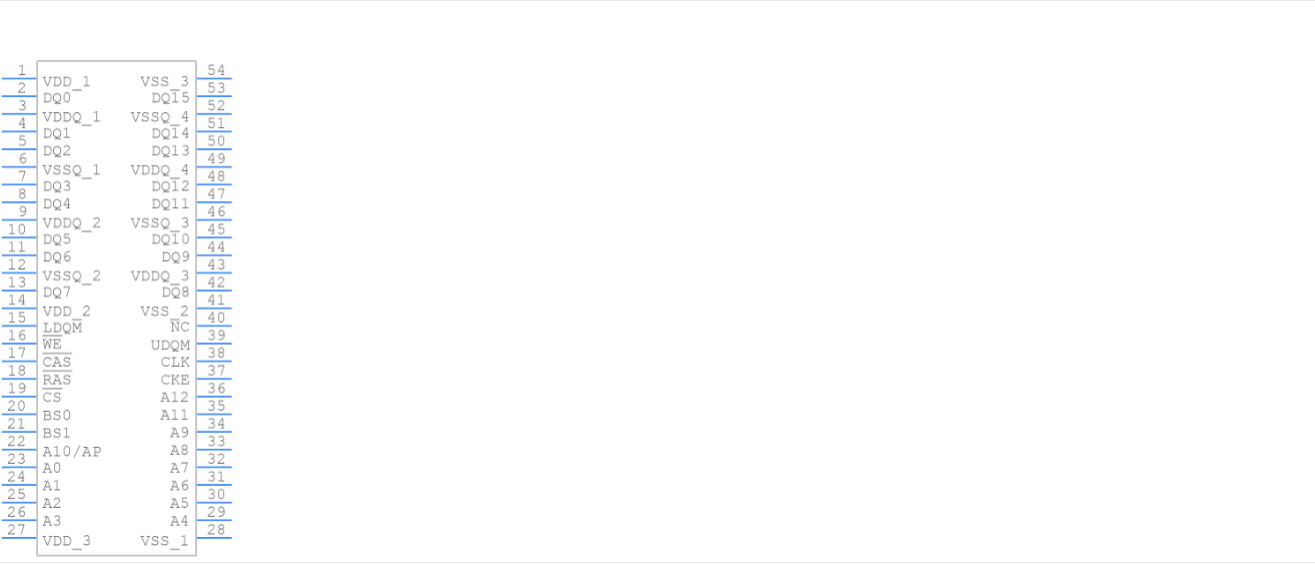

more_schimg

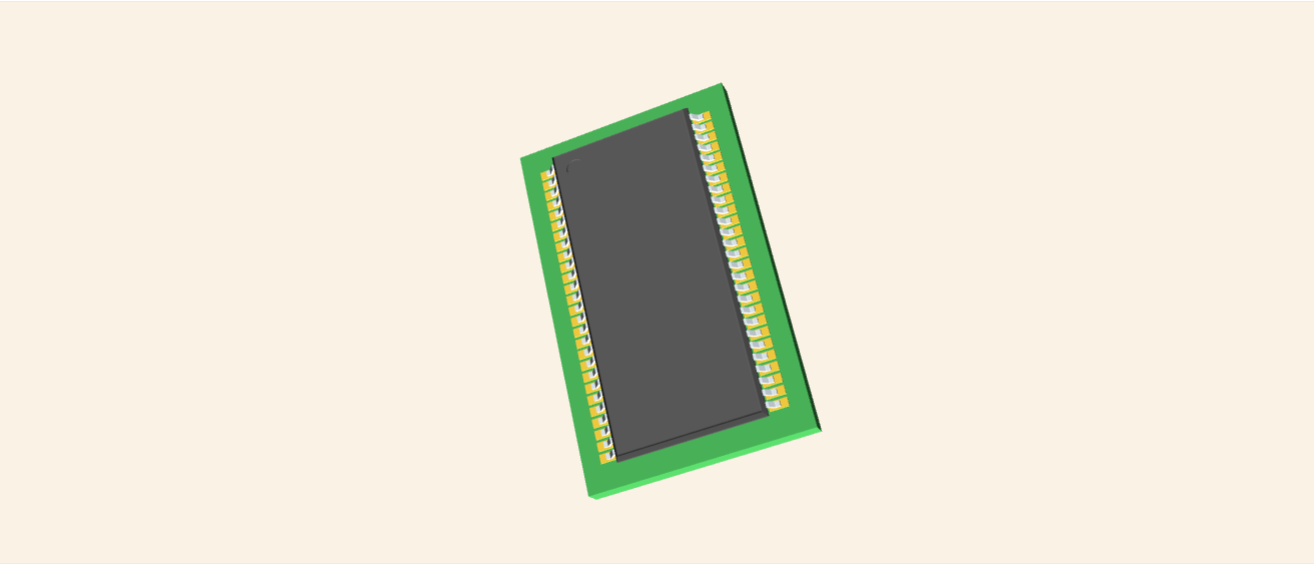

more_3dimg

more_desctext

256Mb SDRAM 166MHz TSOPII54
Pin Count54
Part Category--------Integrated Circuit
Package Category--------Small Outline Packages

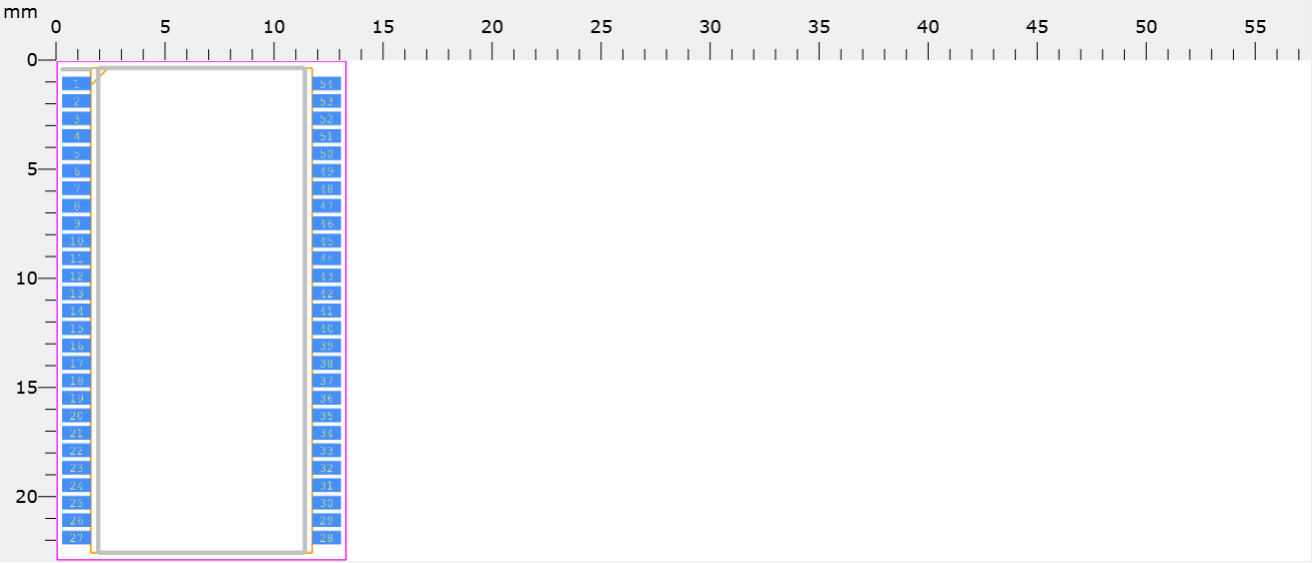

Footprint Name--------Small Outline Packages - Package Outline TSOP (TYPE II) 54L 400 MIL (1:3)-

download_pdf

more_faq

W9825G6KH-6 Frequently Asked Questions (FAQs)

What is the recommended operating voltage range for the W9825G6KH-6?
The recommended operating voltage range for the W9825G6KH-6 is 1.7V to 1.95V.

How do I handle the power-up and power-down sequences for the W9825G6KH-6?
The power-up sequence should be VCC first, then VIO, and then clock and input signals. For power-down, the sequence should be reversed.

What is the maximum clock frequency supported by the W9825G6KH-6?
The maximum clock frequency supported by the W9825G6KH-6 is 166 MHz.

How do I implement the self-refresh mode on the W9825G6KH-6?
To implement self-refresh mode, the chip select (CS) pin should be set high, and the clock (CLK) pin should be stopped. The device will then enter self-refresh mode to reduce power consumption.

What is the maximum current consumption of the W9825G6KH-6?
The maximum current consumption of the W9825G6KH-6 is 120 mA during active mode and 10 mA during standby mode.

相关产品

W9825G2JB-6

IC SDRAM 256MBIT 166MHZ 90TFBGA
