BTS4140N

型号

BTS4140N

类目

Power chip > Power electronic switch

制造商/品牌

Infineon (Infineon)

封装

SOT-223

包装

taping

包裹数量

4000

简介

High side switching power chip

请求报价

请填写所有必填字段并点击“提交”，我们将在12小时内通过电子邮件与您联系。如果您有任何问题，请留言或发送电子邮件至 1943626632@qq.com，我们将尽快回复。

有货 52644 PCS

联系信息

more_pkgimg

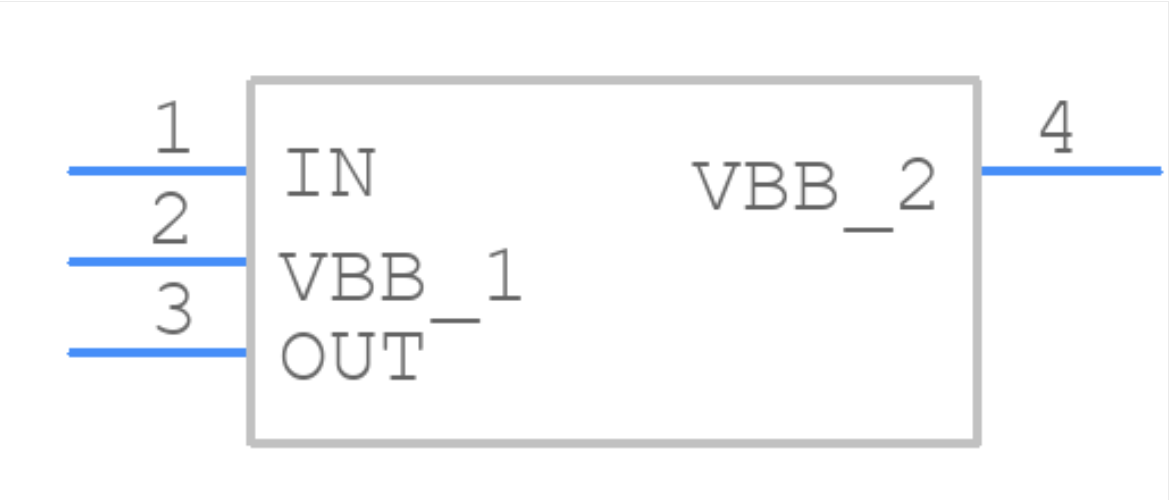

more_schimg

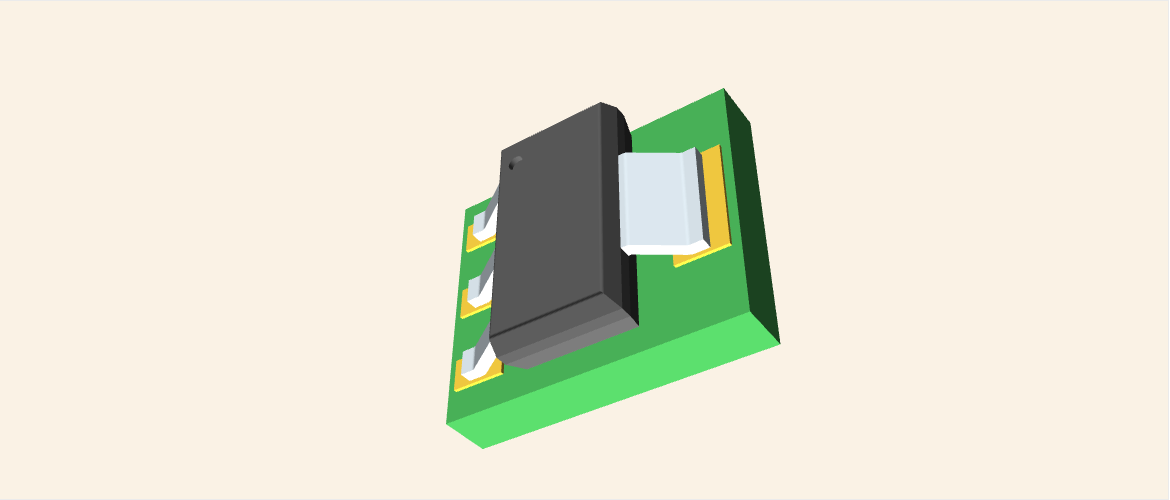

more_3dimg

more_spec

About Infineon Technologies AG

Infineon Technologies is a leading global semiconductor manufacturer that specializes in providing power management, security, and control solutions for a variety of industries such as automotive, industrial, and communication systems.
The company was founded in 1999 and is headquartered in Neubiberg, Germany.
Infineon offers a wide range of products including microcontrollers, power semiconductors, sensors, and other integrated circuits.
The company has a strong presence in the global market, with operations and facilities in various countries across the world.

*This information is for general informational purposes only, we will not be liable for any loss or damage caused by the above information.

more_desctext

0.2A Smart High-Side Power Switch SOT223 Infineon BTS4140N Intelligent Power Switch, High Side, 0.2A, 60V, 3+Tab-Pin, SOT-223
Pin Count--------4
Part Category--------Integrated Circuit
Package Category--------SOT223 (3-Pin)

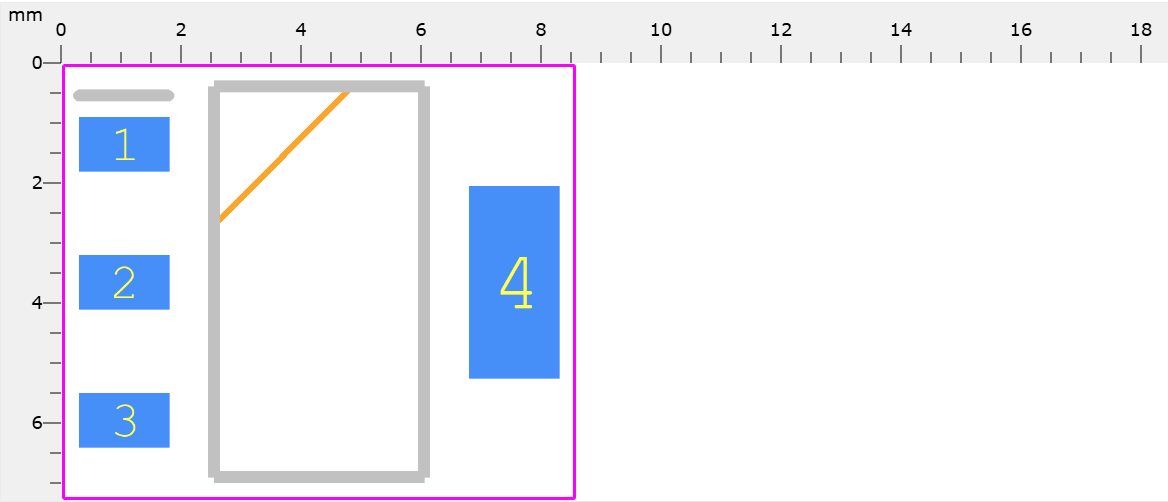

Footprint Name--------SOT223 (3-Pin) - SOT-223

download_pdf

more_faq

BTS4140N Frequently Asked Questions (FAQs)

What is the maximum operating temperature range for the BTS4140N?
The BTS4140N can operate in a temperature range of -40°C to 150°C, making it suitable for high-reliability applications.

How do I ensure the BTS4140N is properly cooled?
The BTS4140N has a thermal pad on the bottom of the package, which should be connected to a heat sink or a thermal interface material to ensure proper heat dissipation.

What is the recommended PCB layout for the BTS4140N?
A good PCB layout for the BTS4140N should include a solid ground plane, short and wide traces for the high-current paths, and a decoupling capacitor close to the device.

How do I protect the BTS4140N from overvoltage and overcurrent?
The BTS4140N has built-in overvoltage protection, but additional protection can be achieved by using a voltage regulator and a current limiter in the application circuit.

Can the BTS4140N be used in high-frequency applications?
Yes, the BTS4140N is suitable for high-frequency applications up to 100 kHz, but the layout and component selection should be optimized to minimize parasitic inductances and capacitances.
