购买 VBsemi (Wei Bi) IRF3205PBF-VB IRF3205PBF-VB

VBsemi (Wei Bi)

图片可能具有代表性。
产品详情请参阅规格.

IRF3205PBF-VB

型号

IRF3205PBF-VB

类目

Triode/MOS Tube/Transistor > Field Effect Transistor (MOSFET)

制造商/品牌

VBsemi (Wei Bi)

封装

包装

Tube

包裹数量

简介

请求报价

请填写所有必填字段并点击“提交”，我们将在12小时内通过电子邮件与您联系。如果您有任何问题，请留言或发送电子邮件至 1943626632@qq.com，我们将尽快回复。

有货 71104 PCS

联系信息

more_pkgimg

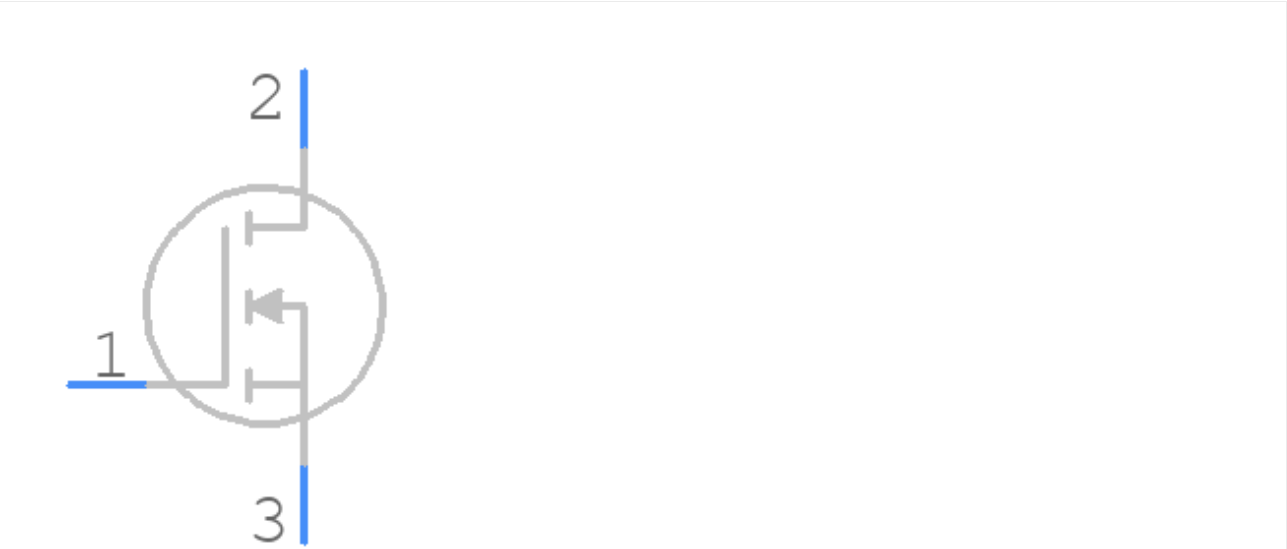

more_schimg

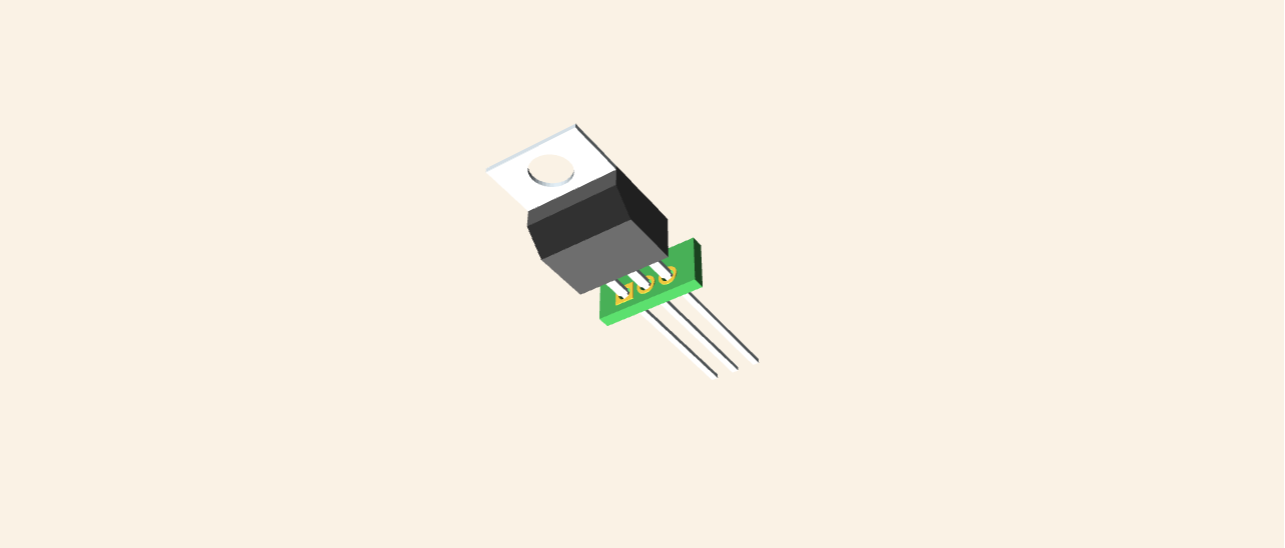

more_3dimg

more_spec

IRF3205PBF Product details
Description
Advanced HEXFET® Power MOSFETs from International Rectifier utilize advanced processing techniques to achieve extremely low on-resistance per silicon area. This benefit, combined with the fast switching speed and ruggedized device design that HEXFET power MOSFETs are well known for, provides the designer with an extremely efficient and reliable device for use in a wide variety of applications.

● Advanced Process Technology
● Ultra Low On-Resistance
● Dynamic dv/dt Rating
● 175°C Operating Temperature
● Fast Switching
● Fully Avalanche Rated
● Lead-Free

more_desctext

MOSFET N-Channel 55V 110A HEXFET TO220AB Infineon IRF3205PBF N-channel MOSFET Transistor, 110 A, 55 V, 3-Pin TO-220AB
Pin Count--------3
Part Category--------MOSFET (N-Channel)
Package Category--------Transistor Outline, Vertical

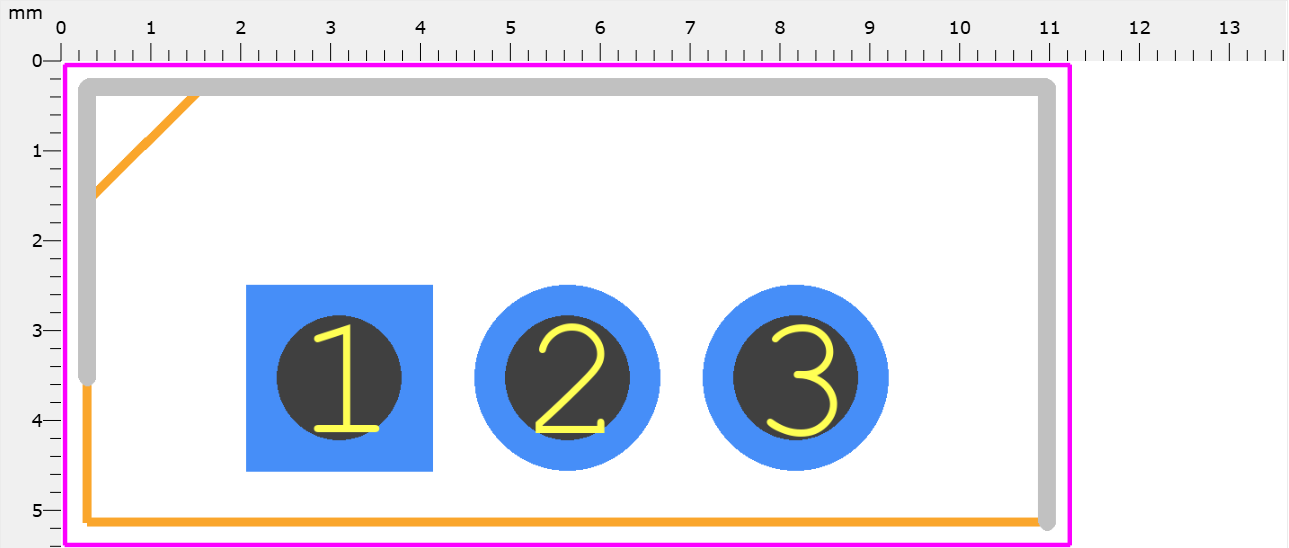

Footprint Name--------Transistor Outline, Vertical - TO-220AB

download_pdf

more_faq

IRF3205PBF Frequently Asked Questions (FAQs)

What is the maximum operating temperature range for the IRF3205PBF?
The maximum operating temperature range for the IRF3205PBF is -55°C to 175°C.

How do I ensure the IRF3205PBF is properly cooled?
To ensure proper cooling, ensure a good thermal interface between the device and the heat sink, and use a heat sink with a thermal resistance of less than 1°C/W.

What is the recommended gate drive voltage for the IRF3205PBF?
The recommended gate drive voltage for the IRF3205PBF is between 10V and 15V, with a maximum gate-source voltage of ±20V.

How do I protect the IRF3205PBF from overvoltage and overcurrent?
Use a voltage clamp or a zener diode to protect the device from overvoltage, and implement overcurrent protection using a current sense resistor and a comparator or a dedicated overcurrent protection IC.

What is the maximum allowable power dissipation for the IRF3205PBF?
The maximum allowable power dissipation for the IRF3205PBF is 130W, but this can be increased with proper heat sinking and cooling.
