购买 QD AD2S1205WSTZ IC CONV R/D 12BIT W/OSC 44-LQFP

图片可能具有代表性。
产品详情请参阅规格.

更多信息数据表

AD2S1205WSTZ

IC CONV R/D 12BIT W/OSC 44-LQFP

型号

AD2S1205WSTZ

制造商/品牌

系列

零件状态

Active

包装

Tray

工作温度

-40°C ~ 125°C

安装类型

Surface Mount

封装/箱体

44-LQFP

类型

R/D Converter

供应商器件封装

44-LQFP (10x10)

电压 - 电源

4.75 V ~ 5.25 V

采样率（每秒）

数据接口

Serial, Parallel

电压供应源

Analog and Digital

分辨率（位）

12 b

请求报价

请填写所有必填字段并点击“提交”，我们将在12小时内通过电子邮件与您联系。如果您有任何问题，请留言或发送电子邮件至 1943626632@qq.com，我们将尽快回复。

有货 7694 PCS

联系信息

more_pkgimg

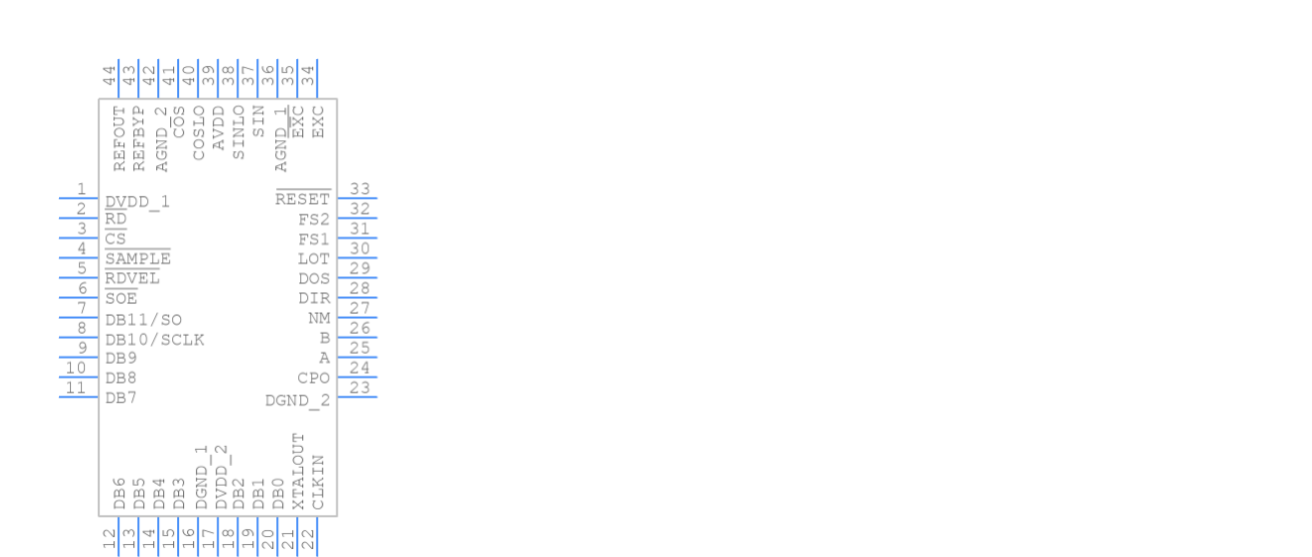

more_schimg

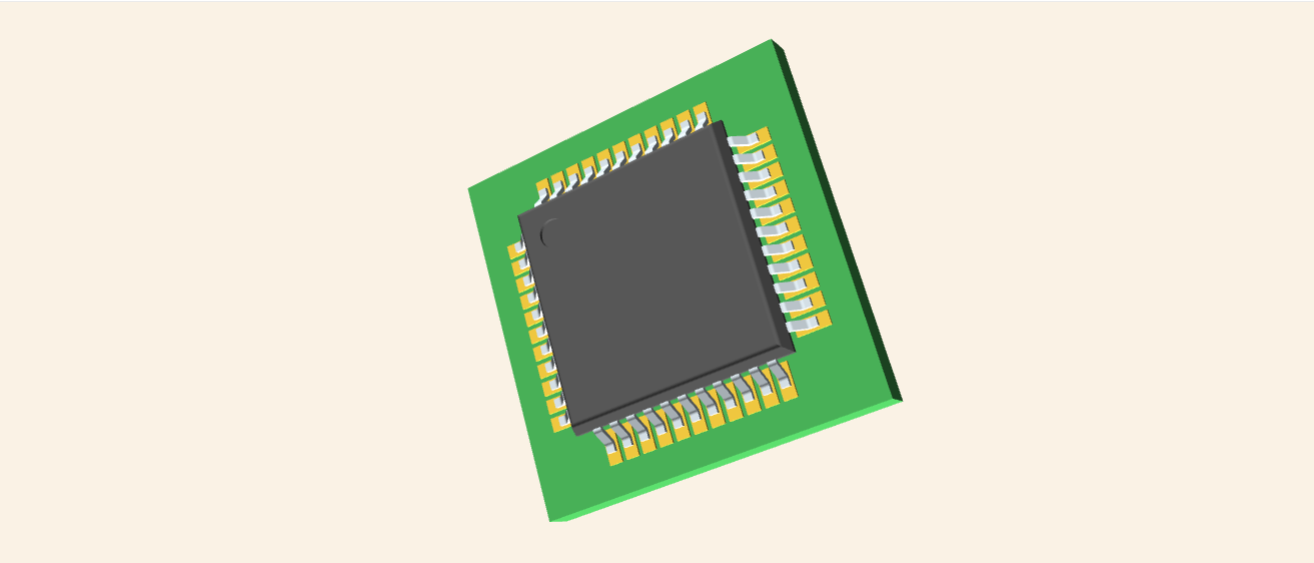

more_3dimg

more_spec

About Analog Devices

Analog Devices, Inc. (ADI) is a publicly traded company that designs, develops, and manufactures high-performance analog, mixed-signal, and digital signal processing (DSP) integrated circuits (ICs).
The company was founded in 1965 and is headquartered in Norwood, Massachusetts.
ADI serves a wide range of industries, including aerospace and defense, automotive, communications, consumer, industrial, medical, and test and measurement.
The company's product portfolio includes data converters, amplifiers and comparators, power management ICs, microcontrollers, sensors, and radio frequency (RF) and microwave components, among others.
ADI is dedicated to innovation and customer satisfaction, and is committed to providing its customers with high-quality, reliable solutions to meet their needs.
With a focus on energy efficiency and sustainability, ADI is a leader in the analog and mixed-signal IC industry, driving technological advancements and providing innovative solutions to the world's most challenging problems.

*This information is for general informational purposes only, we will not be liable for any loss or damage caused by the above information.

more_desctext

Data Acquisition ADCs/DACs - Specialized
Pin Count--------44
Part Category--------Integrated Circuit
Package Category--------Quad Flat Packages

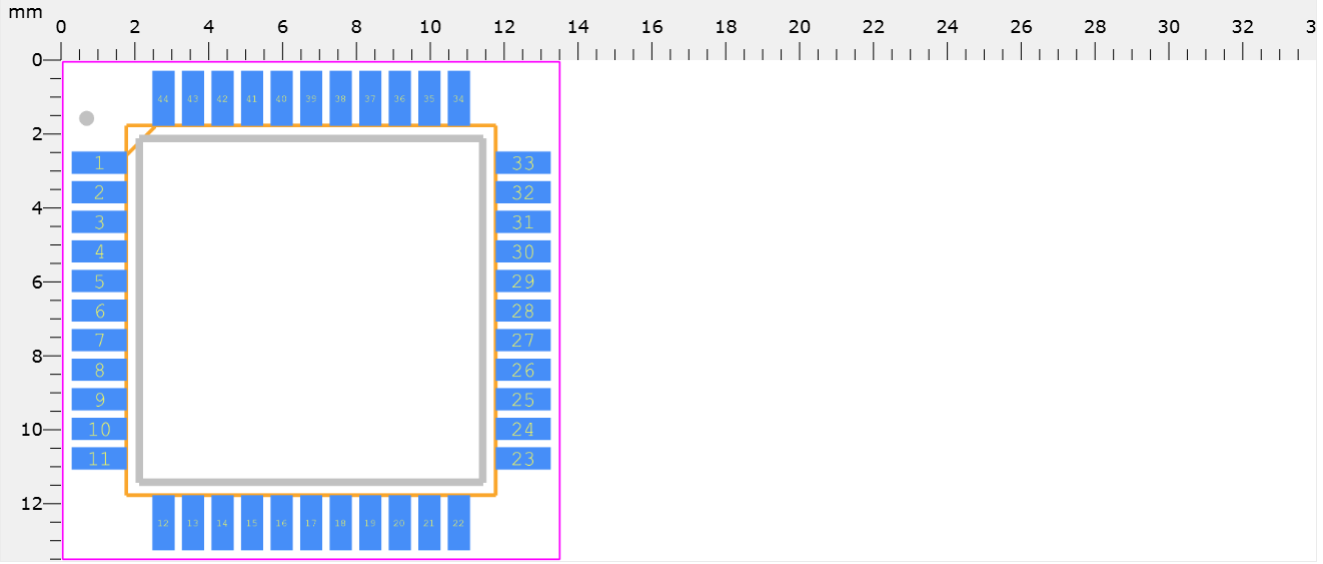

Footprint Name--------Quad Flat Packages - ST-44-1 (LQFP)

download_pdf

more_faq

AD2S1205WSTZ Frequently Asked Questions (FAQs)

What is the recommended PCB layout for the AD2S1205WSTZ to minimize noise and ensure optimal performance?
A 4-layer PCB with a solid ground plane and a separate analog ground plane is recommended. Keep the analog and digital grounds separate and connect them at a single point. Use a star topology for the power supply and keep the power traces away from the analog signals.

How do I ensure the AD2S1205WSTZ is properly calibrated for my specific application?
Calibration involves adjusting the internal gain and offset of the device to match the specific requirements of your application. Refer to the datasheet for the calibration procedure, and use the ADI-provided calibration software or a third-party calibration tool.

What is the maximum clock frequency that can be used with the AD2S1205WSTZ?
The maximum clock frequency for the AD2S1205WSTZ is 20 MHz. However, the actual clock frequency used may be limited by the specific application and the required resolution and accuracy.

Can the AD2S1205WSTZ be used in a multi-channel application, and if so, how?
Yes, the AD2S1205WSTZ can be used in a multi-channel application. Use multiple devices, each connected to a separate channel, and synchronize the clock signals to ensure simultaneous sampling. Alternatively, use a single device with a multiplexer to switch between channels.

What is the recommended power-up sequence for the AD2S1205WSTZ to prevent damage or incorrect operation?
Power up the device in the following sequence: VDD, AVDD, and then CLKIN. Ensure that the power supplies are stable and within the recommended voltage range before applying the clock signal.
