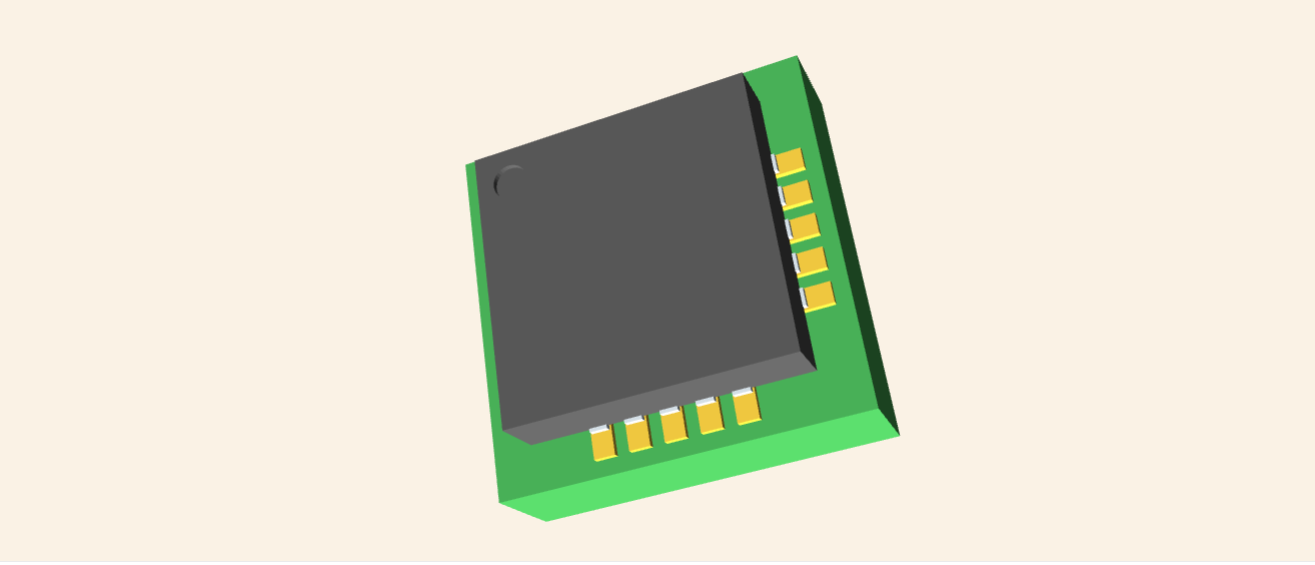

SE5004L-R Frequently Asked Questions (FAQs)


What is the recommended PCB layout and thermal management for optimal performance?
The SE5004L-R requires a well-designed PCB layout to minimize thermal resistance and ensure optimal performance. A recommended layout includes a solid ground plane, minimal thermal vias, and a heat sink attached to the exposed pad. Additionally, a thermal interface material (TIM) can be used to improve heat transfer between the device and the heat sink.


How do I optimize the input and output matching networks for maximum power transfer?
To optimize the input and output matching networks, use a combination of simulation tools and empirical methods. Start by simulating the device's S-parameters using a tool like Advanced Design System (ADS) or Microwave Office. Then, use a Smith chart to visualize the impedance matching and adjust the component values accordingly. Finally, verify the design through prototyping and measurement.


What are the recommended soldering and assembly techniques for the SE5004L-R?
To ensure reliable assembly, follow the recommended soldering profile and techniques. Use a nitrogen reflow oven with a peak temperature of 240°C to 250°C. Apply a solder paste with a melting point of 217°C to 220°C. Use a stencil with a thickness of 0.1 mm to 0.15 mm. Avoid excessive soldering temperatures and times to prevent damage to the device.


How do I troubleshoot common issues like overheating, low gain, or oscillations?
To troubleshoot common issues, start by verifying the PCB layout and thermal management. Check for proper heat sink attachment, thermal interface material, and airflow. Next, verify the input and output matching networks using a vector network analyzer. Check for signs of oscillation, such as unusual frequency responses or excessive current draw. Finally, consult the datasheet and application notes for guidance on troubleshooting specific issues.


What are the reliability and qualification tests that the SE5004L-R has undergone?
The SE5004L-R has undergone rigorous reliability and qualification tests, including temperature cycling, humidity testing, and mechanical stress testing. The device is qualified to meet the requirements of AEC-Q102 and is suitable for automotive and industrial applications. Refer to the datasheet and qualification report for detailed information on the testing and results.
